Front Emblem through January 2011

Front Emblem through January 2011

Removing

- Remove the radiator grille. Refer to => [ Radiator Grille through January 2011 ] Radiator Grille through January 2011.






- Remove the honeycomb radiator grille on the back side from the radiator grille.

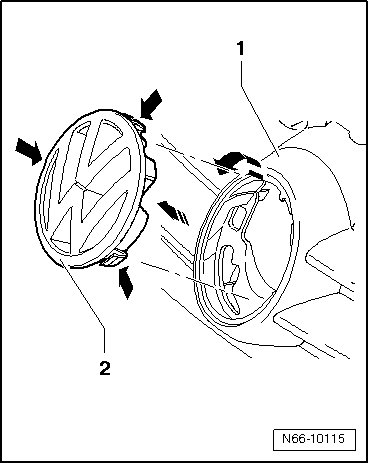

- Disengage the hooks - arrows - on the back side of the emblem - 2 - for the removed radiator grille - 1 -.

- Turn the emblem - 2 - slightly in the - direction of the arrow - and remove it toward the front out of the radiator grille - 1 -.

Installation

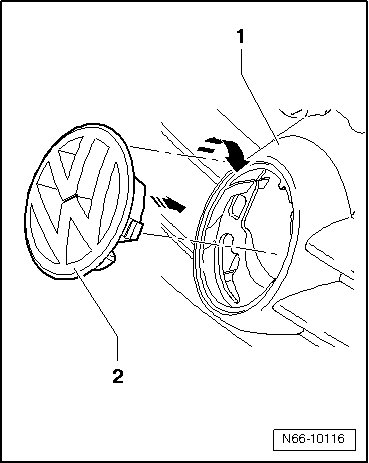

- Guide the emblem - 2 - with the hooks into the opening in the radiator grille - 1 -.






- Turn the emblem - 2 - slightly in the - direction of arrow -, until the emblem - 2 - locks into the radiator grille - 1 -.

- Install the honeycomb radiator grille on the back side of the radiator grille.

- Install the radiator grille. Refer to => [ Radiator Grille through January 2011 ] Radiator Grille through January 2011.
