Front Emblem from January 2011

Front Emblem from January 2011






Removing

- Remove the radiator grille. Refer to => [ Radiator Grille from January 2011 ] Radiator Grille from January 2011.

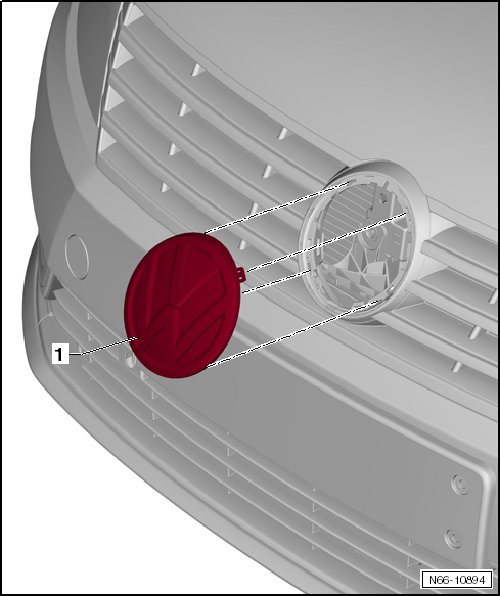

- Release the emblem hooks - 1 - on the back side of the radiator grille.

- Unhook the emblem - 1 - toward the front out of the radiator grille.

Installation

- Attach the lower anchorage points.

- Fold the emblem - 1 - into the radiator grille and lock it in.

- The emblem - 1 - muss engage audibly.

- Install the radiator grille. Refer to => [ Radiator Grille from January 2011 ] Radiator Grille from January 2011.
