Fender Name Plate Dimensional Data, R-Line

Fender Name Plate Dimensional Data, R-Line

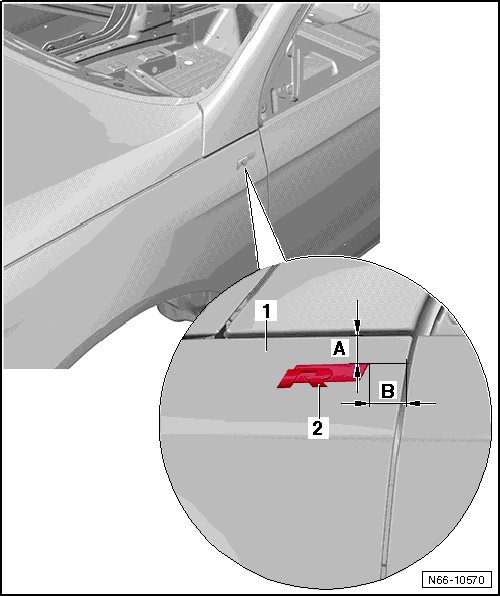

1 Fender

2 Name badge

• Repair Information, refer to => [ Repair Information ] Name Badge and Brand Emblem Dimensions Repair Information

• - Dimension A - = 40 mm

• Distance from the name plate to the upper edge of the fender

• - Dimension B - = 47 mm

• Distance from the name plate to the outer edge of the fender
