Rear Bumper Cover Guides Assembly Overview from January 2011
Rear Bumper Cover Guides Assembly Overview from January 2011

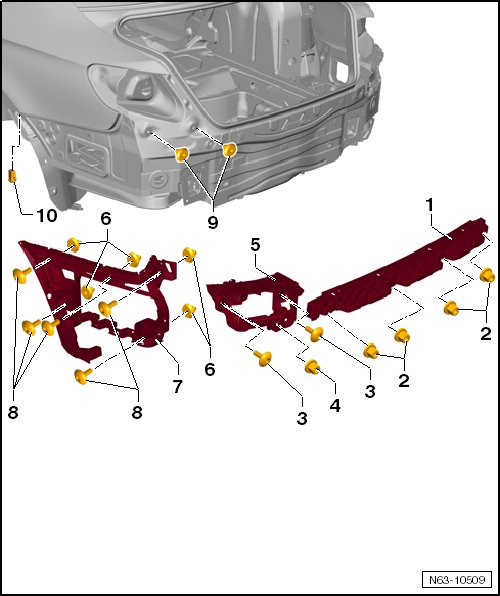

1 Securing strip
2 Nut
• Quantity: 4
• Tightening specification: 2.2 Nm
3 Screws
• Quantity: 2
• Tightening specification: 2.2 Nm
4 Nut
• Left and right
• Tightening specification: 2.2 Nm
5 Guide trim
• Left and right
6 Expanding nut
• Gas-tight
• 5 on each side
7 Guide trim
• Left and right
8 Screws
• 5 on each side
• Tightening specification: 2.2 Nm
9 Expanding nut
• Gas-tight
• 2 on each side
10 Expanding nut
• 1 on each side
