Steering Mounted Controls Assembly: Service and Repair

Multifunction Buttons

• Removal and installation is identical for right and left button block.

Removing

- Remove the driver side airbag unit.

- Remove the bolt - arrow -.






- Remove the button block.

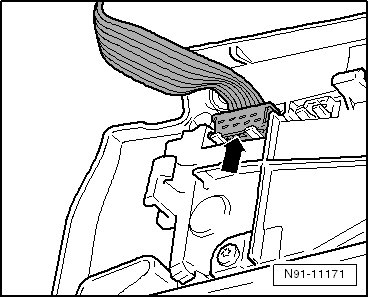

- Disconnect the connector - arrow - from the block of buttons.






Installing

Install in reverse order of removal.

• Make sure to route the wires between both blocks of buttons as illustrated - arrows -.






• Make sure the black connector is connected to the left block of buttons - arrow -.






- Code the steering column electronic systems control module.
