Rear Treble Speaker

Rear Treble Speaker

• Treble speakers are secured to door trim from behind.

• Speaker trim must always be replaced when replacing treble speaker.

• Removing and installing on the left and right sides is identical.

Removing

Perform the following steps before starting:

- Turn off the ignition and all electrical consumers and remove the key.

The door trim panel must first be removed in order to access the speaker..

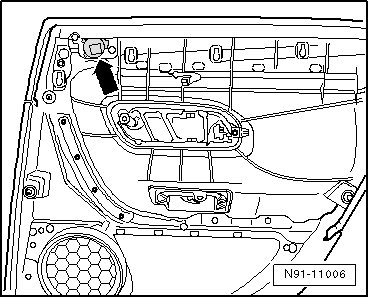

Illustrates the installation location of the treble speaker in the removed door trim - arrow -

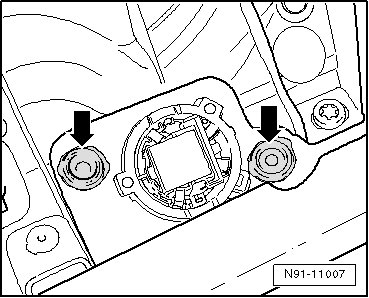

- Cut off the heat-sealed plastic clips - arrows - and remove the speaker and the speaker trim out of the door trim.






Installing

- Install the speaker onto the 3 small plastic clips in the new speaker trim.

- Weld 3 speaker trim plastic clips on the speaker trim with a soldering iron.

- Insert the speaker panel together with the speaker into the door trim.

- Weld the 2 large plastic clips - arrows - in the speaker trim with a soldering iron.






Install in reverse order of removal.
