Front Treble Speaker

Front Treble Speaker

• Treble speaker is installed in mirror triangle at each front door.

• Removing and installing on the left and right sides is identical.

Removing

Perform the following steps before starting:

- Turn off the ignition and all electrical consumers and remove the key.

The door trim panel must first be removed in order to access the speaker..

- Disconnect the connector in the wire to the speaker - arrows -.

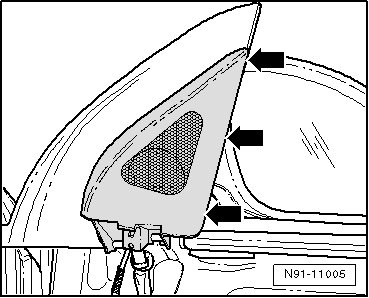

- Unclip the trim with the speaker - arrows -.






- If the plastic clip - arrow - remains on the trim, remove it and insert it into the door.






Otherwise trim of mirror triangle can no longer be installed correctly.

Speaker can only be replaced in conjunction with trim of mirror triangle.

Installing

Install in reverse order of removal.
