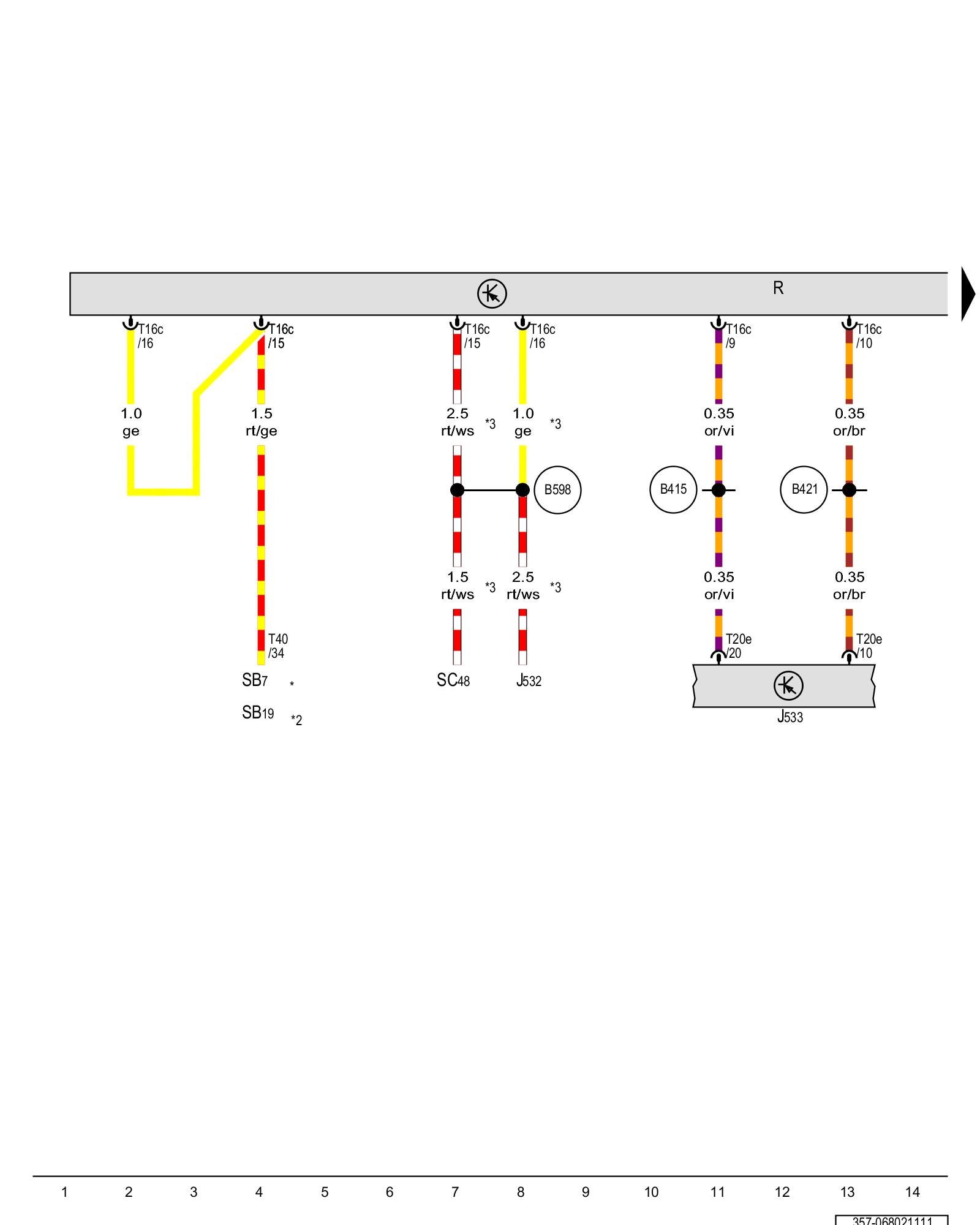

Diagram 68/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Data bus on board diagnostic interface, Radio





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J532 - Voltage stabilizer

J533 - Data bus on board diagnostic interface Control Modules in Interior

R - Radio

SB7 - Fuse 7 (on fuse panel B)

SB19 - Fuse 19 (on fuse panel B)

SC48 - Fuse 48 (on fuse panel C)

T16c - 16-pin connector

T20e - 20-pin connector

T40 - 40-pin connector

(B415) - Infotainment CAN Bus high connection 1 (in main wiring harness)

(B421) - Infotainment CAN bus low connection 1 (in main wiring harness)

(B598) - Positive connection 11 (30a) (in interior wiring harness)

* - Fuses in the E-box, Low

*2 - Fuses in the E-box, High

*3 - Only for vehicles with Start/Stop system

Next Diagram 68/3 (Tracks 15-28)
