Audio System - Sound Quality Using MDI Or AUX Radio Input
91 12 17August 10, 2012
2030420
Vehicle Information
Condition
Sound Quality Using MDI or AUX Radio Input
MDI or AUX input sounds distorted.
Technical Background
The AUX/MDI input volume is adjustable on all M.Y. 2011 and newer radios. Each radio has a low, medium, and high option. If the sound quality is poor or distorted when using a media device, the input volume setting can be turned down to minimize distortion. With the input volume on a "high" setting, the possibility of poor sound quality while using the MDI or AUX input is increased.
Production Solution
Not applicable.
Service
The following screen pictures illustrate how to adjust the media input volume on the RCD 310, RCD 510 (Premium 8), RNS 315, and RNS 510 radios.

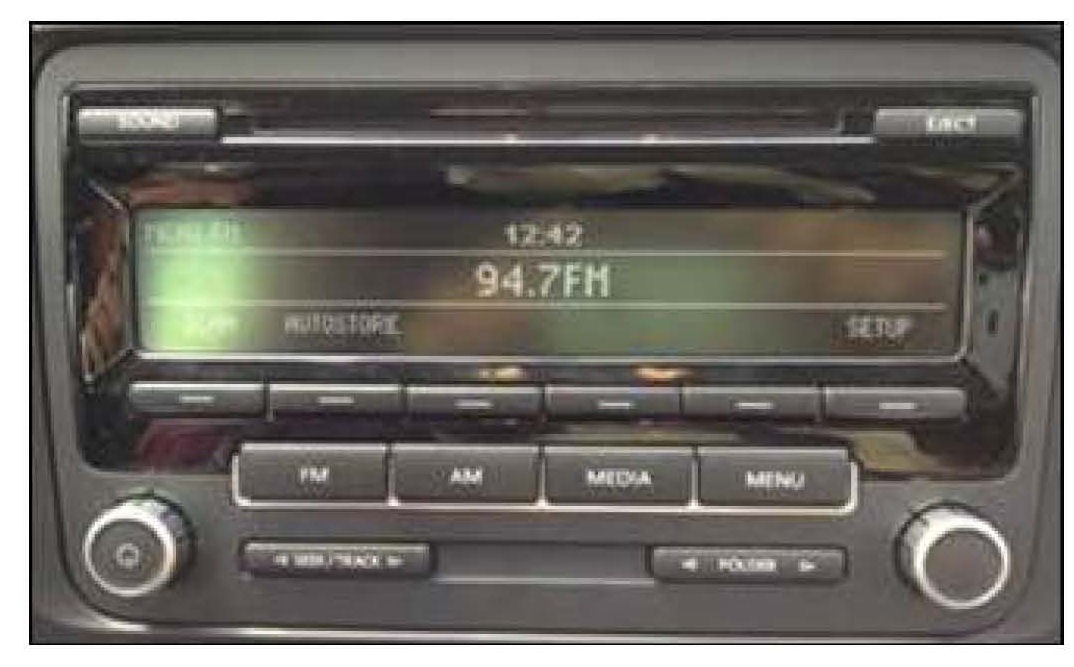

RCD 310
^ Press the "Menu" button on the radio
^ Select "Setup"

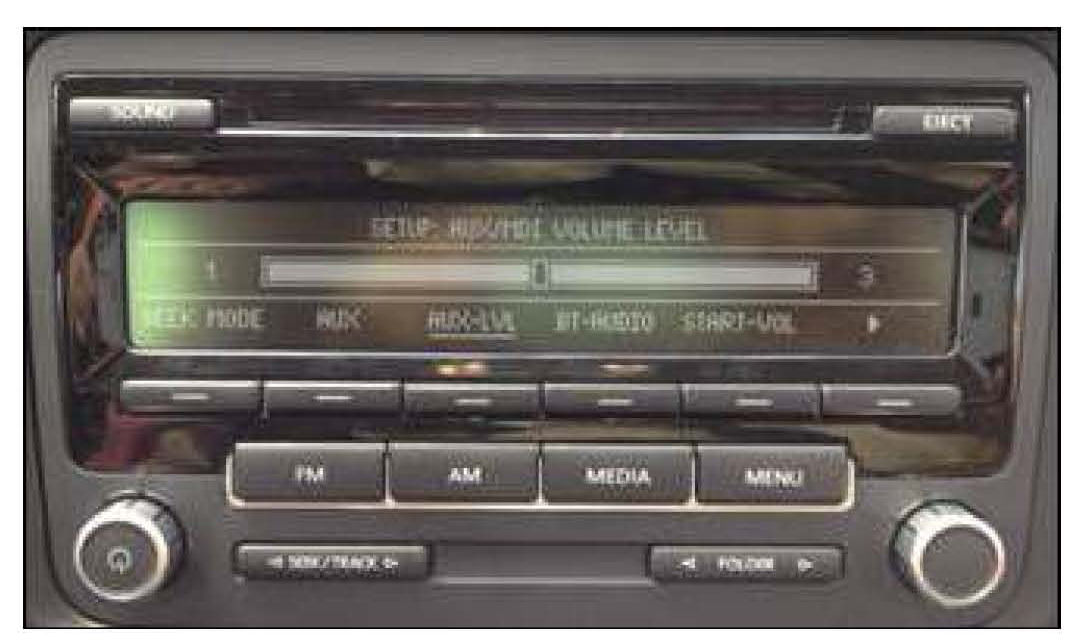

^ Select "AUX-LVL"
^ Adjust to level 2 (bar centered) and reevaluate the customers concern.

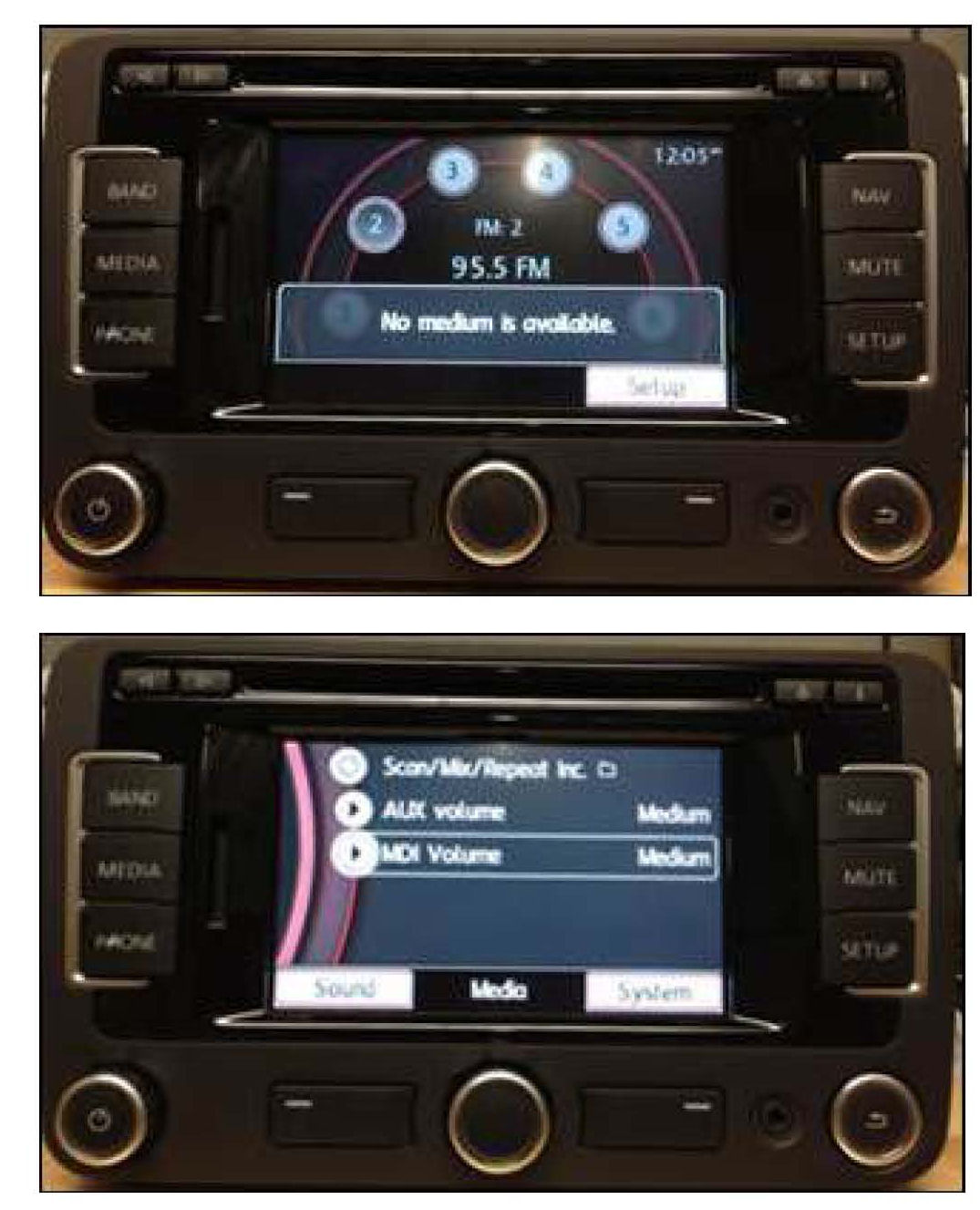

RNS 315
^ Press the "Media" button
^ Select "Setup" on the bottom right corner of the screen
^ "AUX volume" and "MDI volume" are separately adjustable on the RNS 315
^ Select the "Medium" setting for both options and reevaluate the customers concern

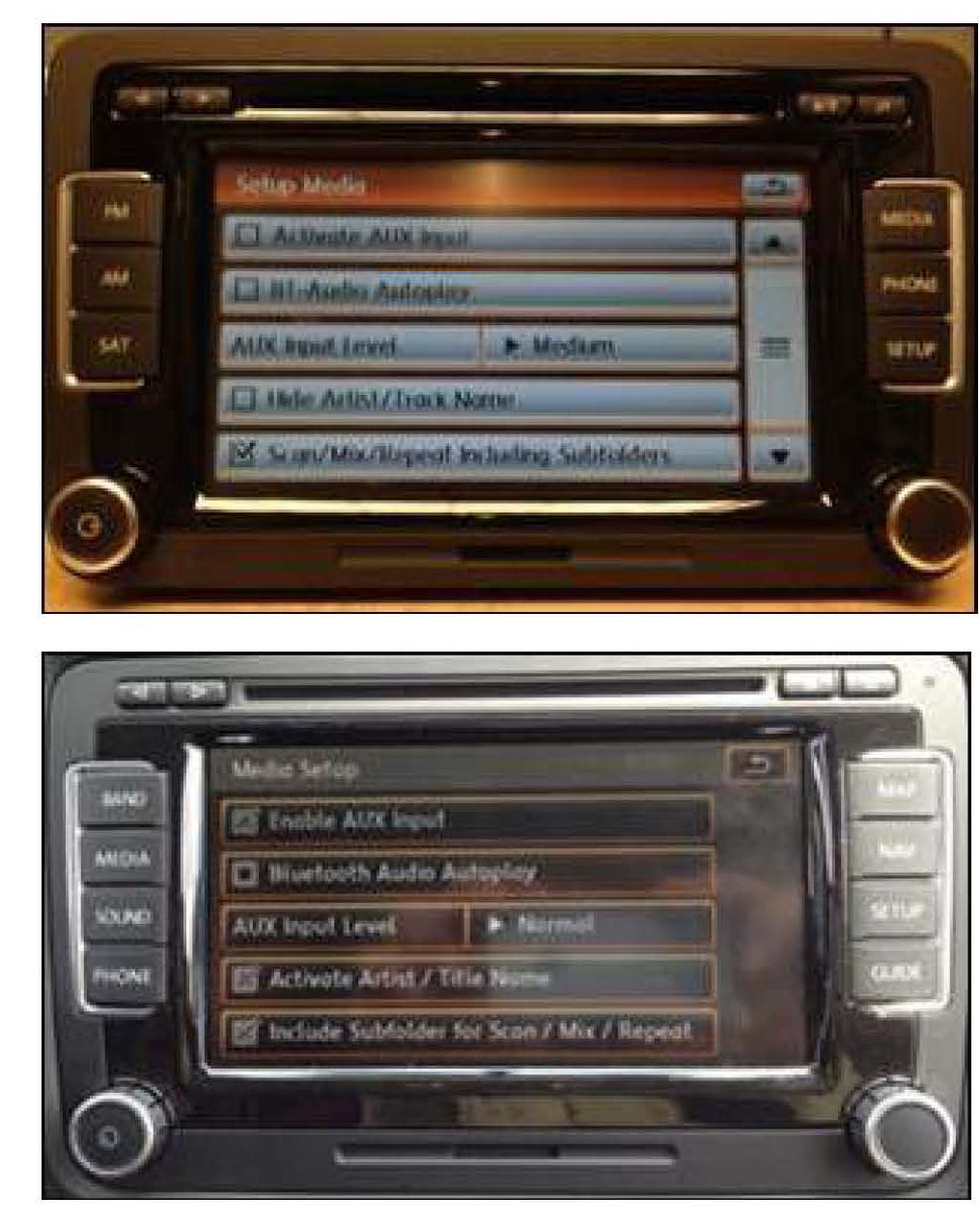

RCD 510 (Premium 8) and RNS 510
^ Press the "Setup" button on the radio
^ Select "AUX Input Level"
^ Select "Medium" then reevaluate the customers concern
^ The adjustment procedure is identical between the Premium 8 and RNS
510
^ On the RNS 510 the "Aux Input Level" should be set to "Normal"
Warranty
Information only.
Required Parts and Tools
No special parts required.
No special tools required.
Additional Information
All part and service references provided in this Technical Bulletin are subject to change and/or removal.
Always check with your Parts Dept. and Repair Manuals for the latest information.
