Parking Aid Overview

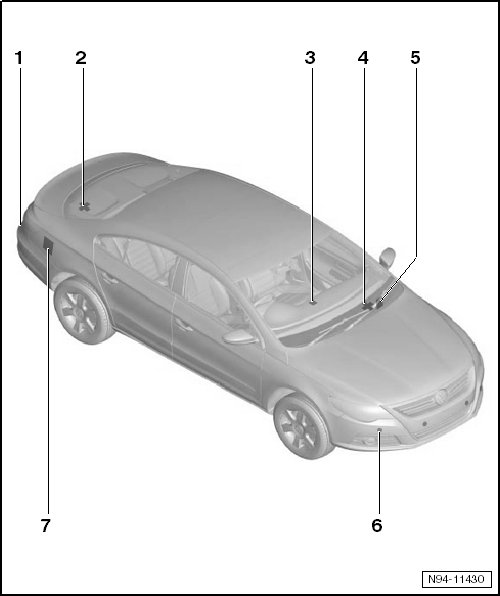

Parking Aid Overview






1 Parking Aid Sensor in Rear Bumper Cover

• Left rear parking aid sensor (G203) in rear bumper cover.

• Left rear center parking aid sensor (G204) in rear bumper cover.

• Right rear center parking aid sensor (G205) in rear bumper cover.

• Right rear parking aid sensor (G206) in rear bumper cover.

• Removing and installing, refer to => [ Rear Parking Aid Sensor ] Rear Parking Aid Sensor.

• Checking, refer to => [ Rear Parking Aid Sensor, Checking ] Rear Parking Aid Sensor, Checking.

• Replacing, refer to => [ Rear Parking Aid Sensor ] Rear Parking Aid Sensor.

• Rear Bumper Cover Sensor Bracket, Painting, refer to => [ Rear Bumper Cover Parking Aid Sensor Bracket, Painting ] Rear Bumper Cover Parking Aid Sensor Bracket, Painting.

2 Rear Parking Aid Warning Buzzer (H15)

• Removing and installing, refer to => [ Rear Parking Aid Warning Buzzer H15 ] Rear Parking Aid Warning Buzzer H15

• Rear Parking Aid Warning Buzzer, Adjusting Volume, refer to => [ Rear Parking Aid Warning Buzzer H15 Volume, Adapting ] Rear Parking Aid Warning Buzzer H15 Volume, Adapting

• Rear Parking Aid Warning Buzzer, Adjusting Tone, refer to => [ Rear Parking Aid Warning Buzzer H15 Tone, Adapting ] Rear Parking Aid Warning Buzzer H15 Tone, Adapting

• Check using output diagnostic test mode.

3 Parking Aid Button (E266)

• Inside the center console next to gear selector lever.

• Removing and installing, refer to => [ Center Console Switches ] Center Console Switches.

4 Front Parking Aid Warning Buzzer (H22)

• Removing and installing, refer to => [ Front Parking Aid Warning Buzzer H22 ] Front Parking Aid Warning Buzzer H22.

• Front parking aid warning buzzer, adjusting volume, refer to => [ Front Parking Aid Warning Buzzer H22 Volume, Adapting ] Front Parking Aid Warning Buzzer H22 Volume, Adapting.

• Front parking aid warning buzzer, adjusting tone, refer to => [ Front Parking Aid Warning Buzzer H22 Tone, Adapting ] Front Parking Aid Warning Buzzer H22 Tone, Adapting.

• Check using output diagnostic test mode.

5 Parking Aid Control Module (J446) from 22/08

• Over the relay carrier in the driver footwell.

• Removing and installing, refer to => [ Parking Aid Control Module J446, from 05.08 ] Parking Aid Control Module J446, from 05.08.

• Check using output diagnostic test mode.

6 Parking Aid Sensor in Front Bumper Cover and Radiator Grille

• Left front parking aid sensor (G255)

• Left front center parking aid sensor (G254) (inside the radiator grille)

• Right front center parking aid sensor (G253) (inside the radiator grille)

• Right front parking aid sensor (G252)

• Front parking aid sensor in radiator grill, removing and installing, refer to => [ Front Parking Aid Sensor in Radiator Grill ] Front Parking Aid Sensor in Radiator Grill.

• Front parking aid sensor in bumper cover, removing and installing, refer to => [ Front Parking Aid Sensor in Bumper Cover ] Front Parking Aid Sensor in Bumper Cover.

• Checking, refer to => [ Front Parking Aid Sensor, Checking ] Front Parking Aid Sensor, Checking.

• Replacing, refer to => [ Rear Parking Aid Sensor ] Rear Parking Aid Sensor.

• Sensor bracket in front bumper cover and radiator grill, repairing, refer to => [ Front Bumper Cover and Radiator Grille Parking Aid Sensor Bracket, Bonding ] Front Bumper Cover and Radiator Grille Parking Aid Sensor Bracket, Bonding.

7 Parking Aid Control Module (J446) Through 22/08

• Behind the side trim panel inside the luggage compartment on the right side.

• Removing and installing, refer to => [ Parking Aid Control Module J446, through 05.08 ] Parking Aid Control Module J446, through 05.08.

• Coding, refer to => [ Parking Aid Control Module J446, through 05.08 ] Parking Aid Control Module J446, through 05.08 or => [ Parking Aid Control Module J446, from 05.08 ] Parking Aid Control Module J446, from 05.08.

• Check using output diagnostic test mode.
