Rear Parking Aid Warning Buzzer H15

Rear Parking Aid Warning Buzzer H15

The Rear Parking Aid Warning Buzzer is located below rear shelf at right.

Removing

- Switch off the ignition and all electrical consumers and move the ignition key or start button into the 0 position (preliminary engaged position).

- Remove the rear shelf..

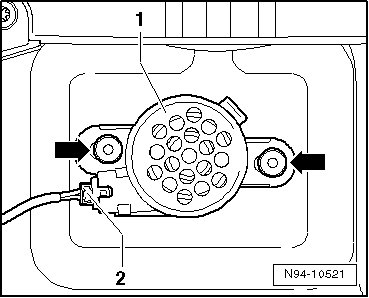

- Unlock and disconnect the connector - 2 -.






- Remove expanding rivets - arrows - and remove Rear Parking Aid Warning Buzzer - 1 - from vehicle.

Installing:

Install in reverse order of removal.

• If a new Rear Parking Aid Warning Buzzer is installed, it is not necessary to perform coding, basic setting or adaptation.
