Front Parking Aid Sensor in Radiator Grill

Front Parking Aid Sensor in Radiator Grill

Removing

- Switch off the ignition and all electrical consumers and move the ignition key or start button into the 0 position (preliminary engaged position).

• Only the radiator grille needs to be removed to remove and install the left front center parking aid sensor (G254) or right front center parking aid sensor (G253).

- Remove the radiator grille.

• Always follow the sequence for removing the sensor.

• Otherwise, the sensor may be damaged. Hairline cracks which lead to sensor failure can develop if too much force is used on the sensor.

• First remove the sensor from the bracket and then disconnect the sensor connectors.

- Press the tabs - arrows - on the sensor holder - 1 - outward and pull the sensor - 2 - out with the wires still connected.






• When removing the sensor, make sure that the coupling ring (black silicone ring) remains on the sensor head and not in the holder or that it gets lost.

• Do not bend the coupling ring.

- Unlock and disconnect the connector - 2 - and then remove the sensor - 1 -.






Installing

Install in reverse order of removal. Note the following:

• Do not bend the coupling ring.

• An incorrect or damaged coupling ring can lead to malfunctions.

• Replace damaged coupling rings and ensure the correct ring is installed.

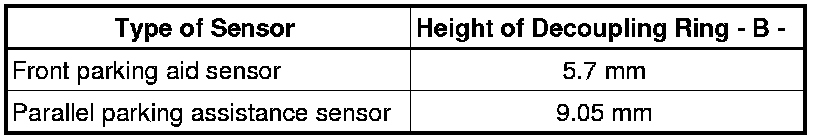

• Since the lengths of the sensor heads of the front parking aid and the parallel parking assistance sensors are different, the high coupling rings installed are also different.

- Make sure the correct coupling ring is installed on the sensor head.











- If necessary, replace the sensor coupling ring - 1 -.

• When installing the sensor, make sure the coupling ring is correctly mounted on the sensor head and that it does not fall off or become jammed when inserting into the sensor holder.

• Both retaining clips on the sensor holder must engage audibly when installing sensor.

- Make sure the sensor is seated correctly in the bracket after installing. Dimension - a - for the circular gap between the sensor head and bumper cover must be even all around on the outer side of the bumper cover.
