Front Parking Aid Sensor

Front Parking Aid Sensor

If a new parking aid sensor is installed, the sensor head must first be painted to match the color of the bumper cover. The following requirements must be observed when painting the sensors to ensure the parking aid system will work correctly.

- Remove the coupling ring (black silicone ring) from the sensor head.

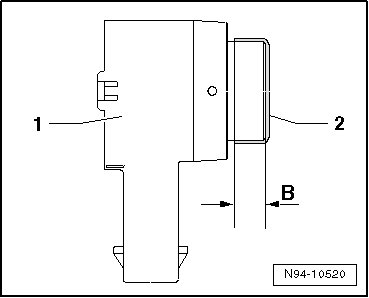

- Remove grease from the black sensor head - 1 - in the area to be painted - 2 - with isopropyl alcohol.






- Paint sensor in the area to be painted - 2 - in the color of the bumper cover.

• Paint application dimension - B - is 3 mm (+ maximum 2 mm).

- After the paint has dried, attach the coupling ring (black silicone ring) to the sensor head.

• Do not bend the coupling ring.
