Parallel Parking Assistance Overview

Parking Aid and Parallel Parking Assistance Systems

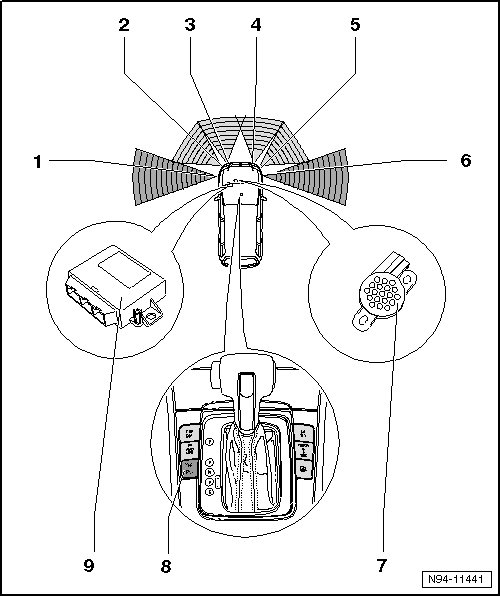

Parallel Parking Assistance Assembly Overview







1 Left Front Parallel Parking Assistance Sensor -G568-
• Located in front bumper cover on the left side of the vehicle
2 Left Front Parking Aid Sensor -G255-
• Located in front bumper cover
3 Left Front Center Parking Aid Sensor -G254-
• Located in the radiator grille
4 Right Front Center Parking Aid Sensor -G253-
• Located in the radiator grille
5 Right Front Parking Aid Sensor -G252-
• Located in front bumper cover
6 Right front parallel parking assistance sensor -G569-
• Located in front bumper cover on the right side of the vehicle
7 Front Parking Aid Warning Buzzer -H22-
• Located in driver footwell, on the instrument panel relay carrier
8 Parking Aid Button -E266-
• Located in the center console storage compartment near the selector lever
9 Parallel Parking Assistance Control Module -J791-
• Located in the left footwell, above the relay carrier
