Parking Aid Sensor Mount Allocation to Installation Location in Rear Bumper Cover

Parking Aid Sensor Mount Allocation to Installation Location in Rear Bumper Cover

Sensor brackets are designed in different shapes and must be matched to the respective component location in the rear bumper cover.

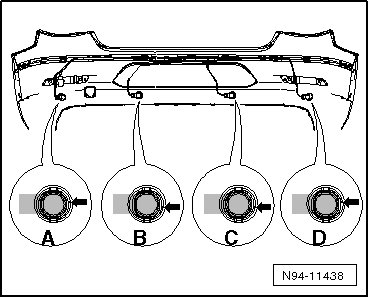

Parking Aid Sensor Mount Allocation in Inner Side of Rear Bumper Cover






A RR - outer right
B RRC - right center
C LRC - left center
D LR - outer left

• Note the different coding - arrows - for the sensor bracket when allocating.

• The outer (A and D) and center (B and C) sensor bracket pairs are identical.
