Parking Aid Sensor Bracket Allocation to Installation Location in Front Bumper Cover and Radiator Grille

Parking Aid Sensor Bracket Allocation to Installation Location in Front Bumper Cover and Radiator Grille

Sensor brackets are designed in different shapes and must be matched to the respective component location in the bumper cover or radiator protective grille.

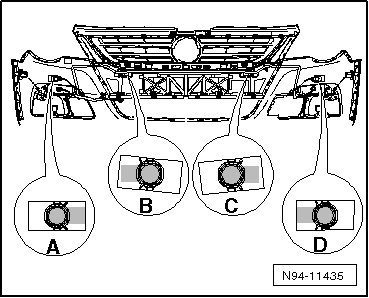

Parking Aid Sensor Bracket Allocation in Inside of Front Bumper Cover and Radiator Grille






A LF - outer left
B LFC - left center (inside the radiator grille)
C RFC - right center (inside the radiator grille)
D RF - outer right
