Telephone Baseplate in Center Console

Telephone Baseplate in Center Console

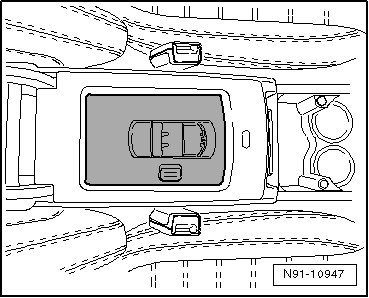

Installed location of the telephone baseplate - arrow -.






Removing

Perform the following steps before starting:

- Turn off the ignition and all electrical consumers and remove the key.

- Remove the cellular telephone from the mount.

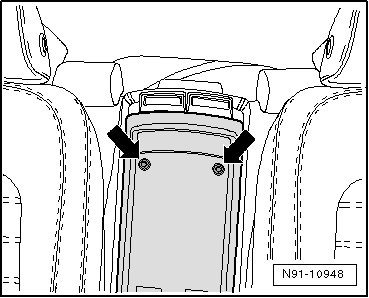

- Open the center console and loosen both of the bolts - arrows -.






- Remove the rear trim from the center console.

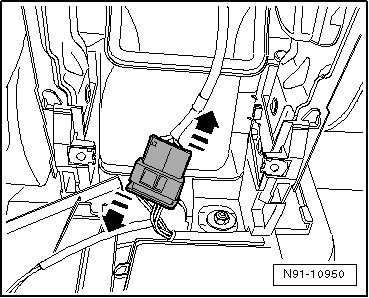

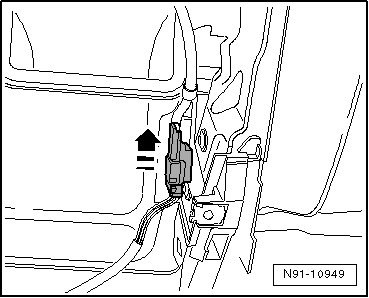

- Unclip the connector upward out of the mount - arrow -.






- Disconnect the connector - in the direction of the arrow -.

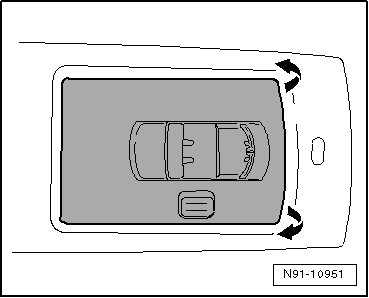

- Carefully unclip the mount for the telephone upward - arrows - and guide out the wires upward.






Installing

Install in reverse order of removal.

• When installing the wire, make sure there is enough clearance so as to avoid damaging the wiring harness.
