Cellular Phone Bracket, Changing

Cellular Phone Bracket, Changing

• There is no preparation for the cellular telephone bracket when the instrument panel is being replaced.

• The opening for the cellular phone bracket must be cut by hand.

• The work will be performed from the back of the instrument panel.

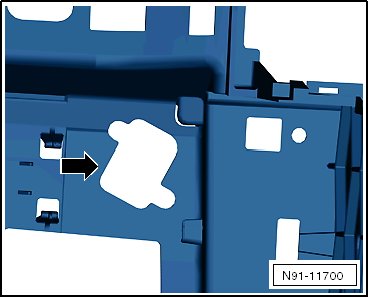

• The opening is next to the slot for the radio - arrow - on the right side.

- Place the instrument panel on a soft surface.

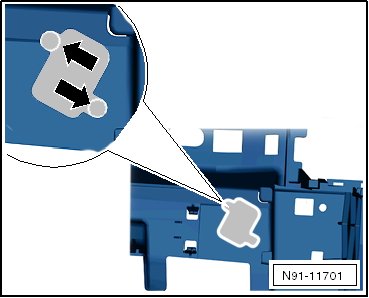

- Drill both holes with a 6.5 mm drill bit - arrows -.

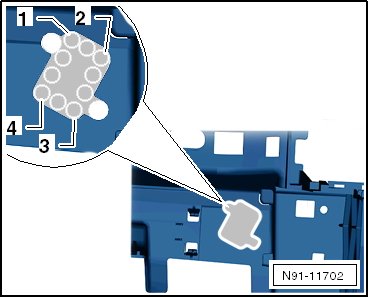

- Drill the holes - 1 through 4 -. Make additional holes as needed.






- Cut out the material.

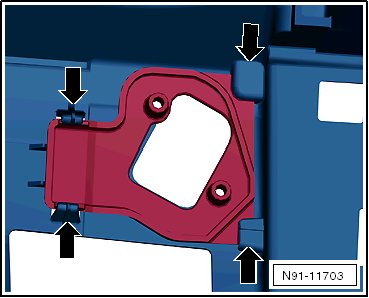

- Unclip the bolt mount from the old instrument panel and install the new one - arrows -.






- Turn over the instrument panel and file the edges - arrow -.






• Make sure the bracket mount is aligned when installing it. The bolt mount may also need to be aligned.

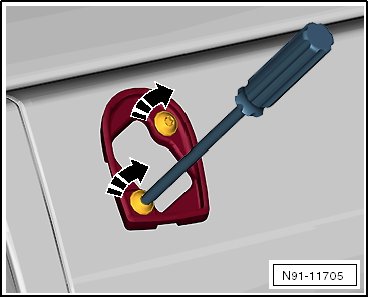

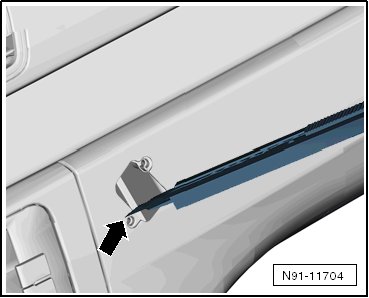

- Alternately tighten the screws- arrows -.






- Guide the wiring harness - 1 - through the opening and clip it into the bracket.

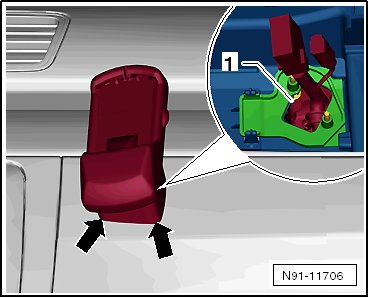

- Guide the wiring harness through the opening - 1 -. Make sure the cradle mount fits correctly in the bracket - arrows -.
