Telephone System, Premium with Bluetooth Overview

Radio Systems and Antenna Overviews

Telephone System, Premium with Bluetooth Overview

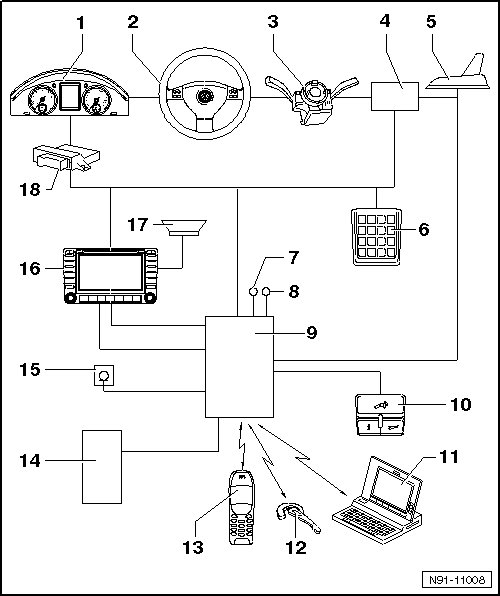

1 Instrument Cluster
2 Multifunction Steering Wheel
3 Steering Column Switch
4 Steering Column Electronic Systems Control Module -J527-
5 Antenna for the telephone, navigation and auxiliary heater remote control -R66-
• Installed as a roof antenna
• Antenna Systems Overview location => [ Antenna Systems Overview ] Locations
6 Cellular Telephone Preparation Control Head -E508-
• Installed in instrument panel above radio unit or radio navigation system
7 Voltage supply for telephone transceiver, plus
8 Voltage supply for telephone transceiver, minus
9 Telephone Transceiver -R36-
• Installed below right front seat
10 Emergency Call Button -E276-
• Installed in front interior light in roof console
11 Notebook, Laptop
• Not obtained with vehicle
12 Headset
• Not obtained with vehicle
13 Cellular Telephone -R54-
• Available as an option
Telephone System, Premium with Bluetooth Overview continued





14 - Telephone Base plate -R126-
• Available as an option
• Installed in center armrest

15 - Telephone Microphone -R38-
• Installed in front interior light in roof console

16 - Radio -R- or Radio/Navigation Display Control Module -J503-

17 - Speaker system

18 - Data Bus On Board Diagnostic Interface
