Interior Rearview Mirror







Interior Rearview Mirror

Removing

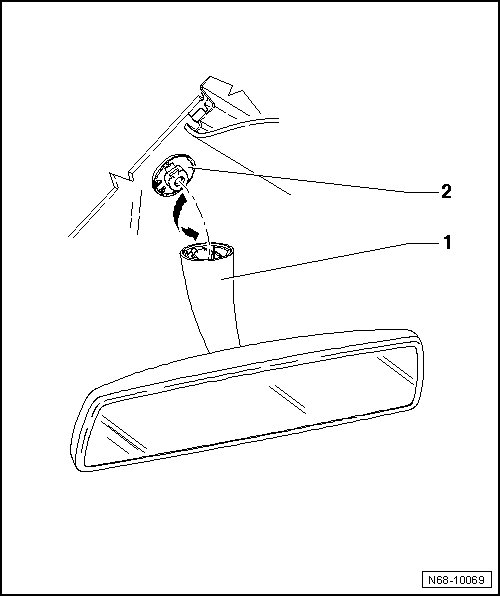

- Rotate the interior rearview mirror - 1 - 90° counterclockwise - arrow - and remove it from the adhesive plate - 2 -.






Installation

- To install, perform the steps used for removal in reverse order.
