Child Seat Anchor Assembly Overview

Child Seat Anchor Assembly Overview

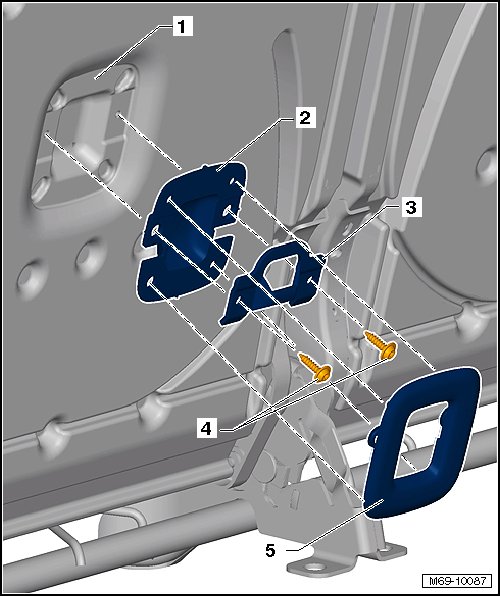

Top Tether






1 Backrest

2 Inner trim

• Removing and Installing, refer to => [ Child Seat Anchor, Top Tether ] Service and Repair

3 Retainer

• Removing and Installing, refer to => [ Child Seat Anchor, Top Tether ] Service and Repair

4 Bolt

• 4 Nm

• Quantity: 4

5 Outer trim

• Removing and Installing, refer to => [ Child Seat Anchor, Top Tether ] Service and Repair
