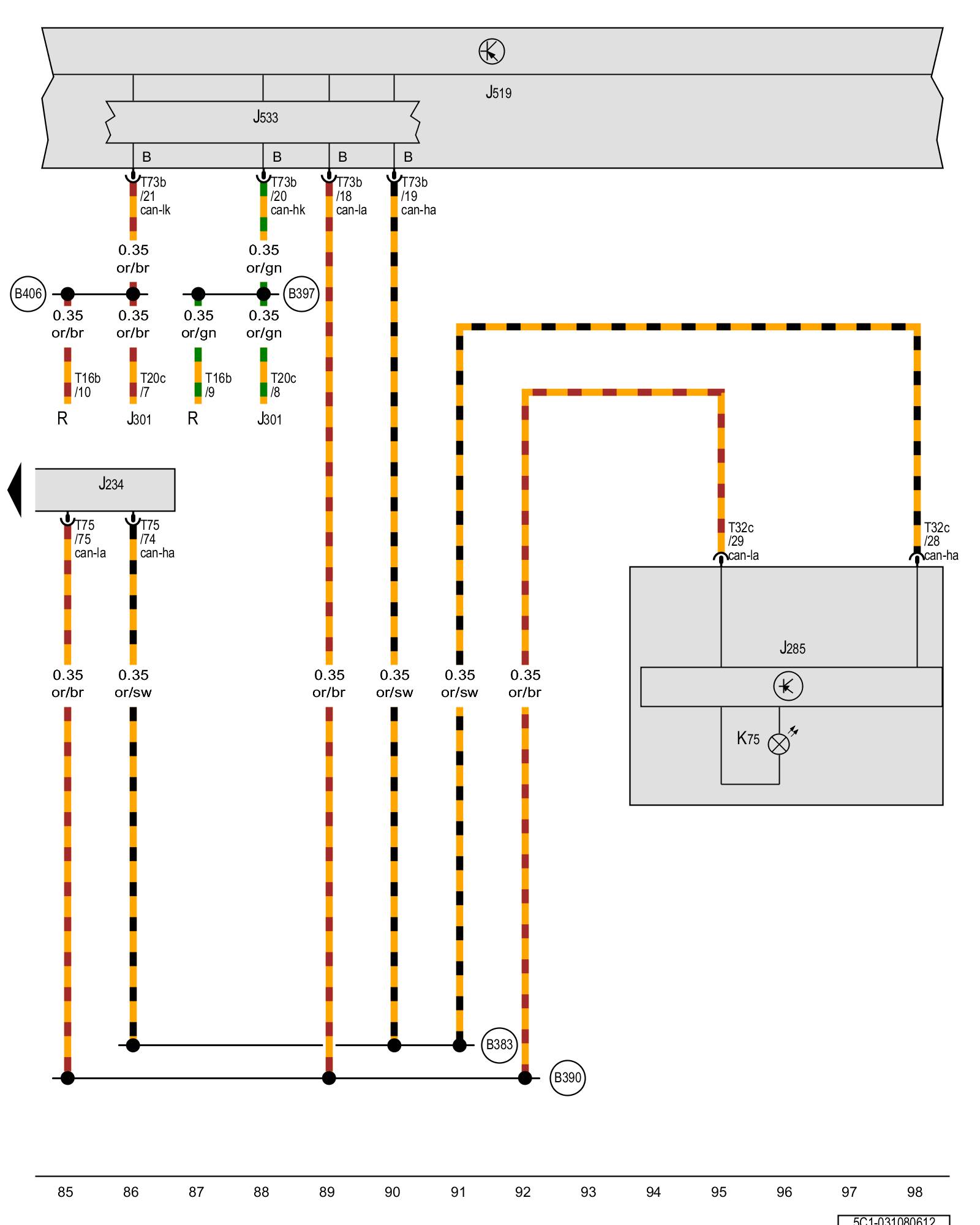

Diagram 31/8 (Tracks 85-98)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Airbag control module, Instrument cluster control module, Vehicle electrical system control module, Data bus on board diagnostic interface





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J234 - Airbag control module Airbag Component Location Overview Control modules in interior [1][2]Air Bag Control Module

J285 - Instrument cluster control module Control modules in interior

J301 - A/C control module Climatic System Component Overview A/C Control Module -J301-

J519 - Vehicle electrical system control module Locations Control modules in interior

J533 - Data bus on board diagnostic interface

K75 - Airbag indicator lamp

R - Radio

T16b - 16-pin connector

T20c - 20-pin connector

T32c - 32-pin connector

T73b - 73-pin connector

T75 - 75-pin connector

(B383) - Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) - Powertrain CAN bus low connection 1 (in main wiring harness)

(B397) - Comfort system CAN bus high connection 1 (in main wiring harness)

(B406) - Comfort system CAN bus low connection 1 (in main wiring harness)

Previous Diagram 31/7 (Tracks 71-84)
