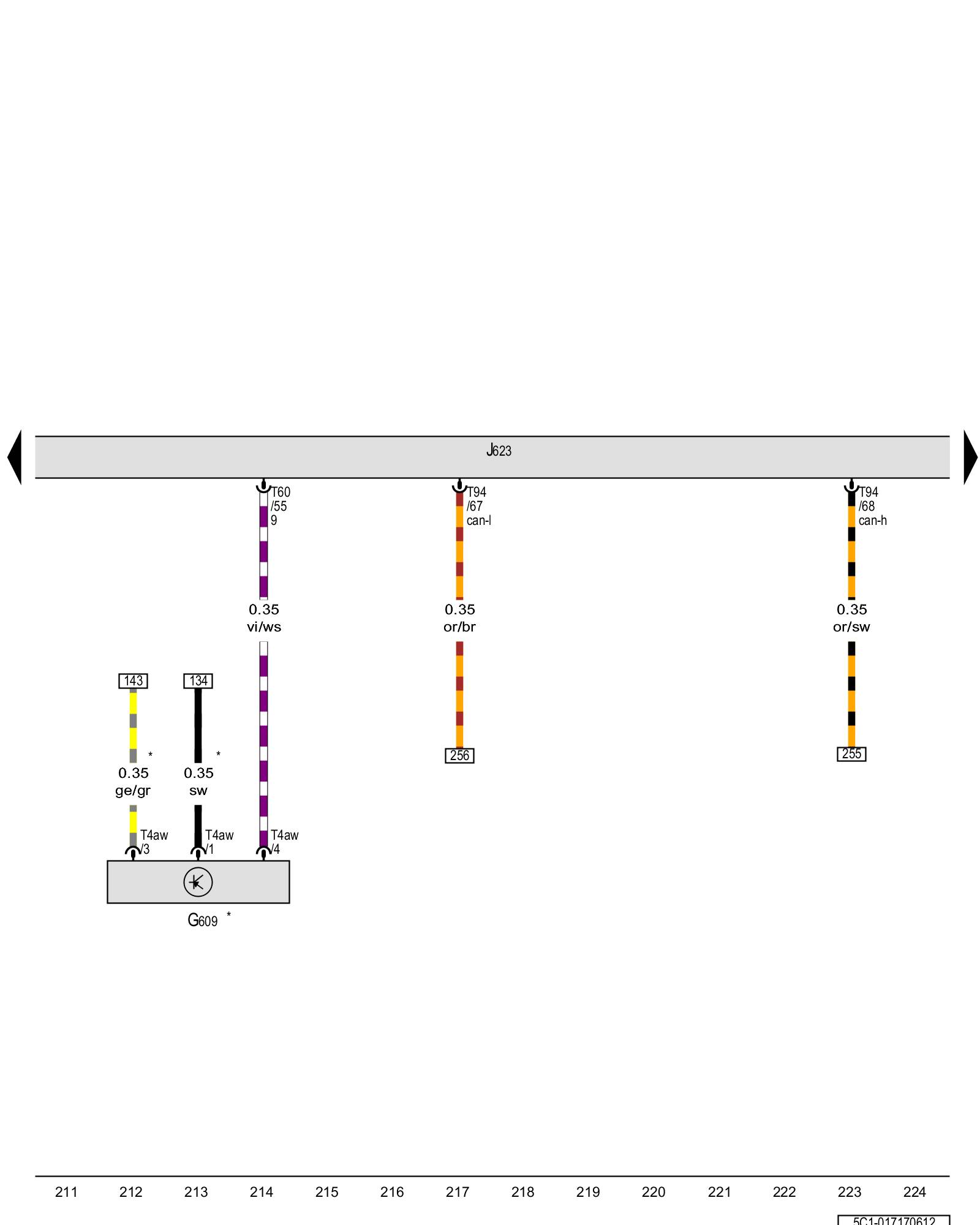

Diagram 17/17 (Tracks 211-224)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Secondary air injection sensor 1, Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G609 - Secondary air injection sensor 1 Locations [1][2]Air Injection Flow Sensor

J623 - Engine control module Locations

T4aw - 4-pin connector

T60 - 60-pin connector

T94 - 94-pin connector

* - Depending on equipment
