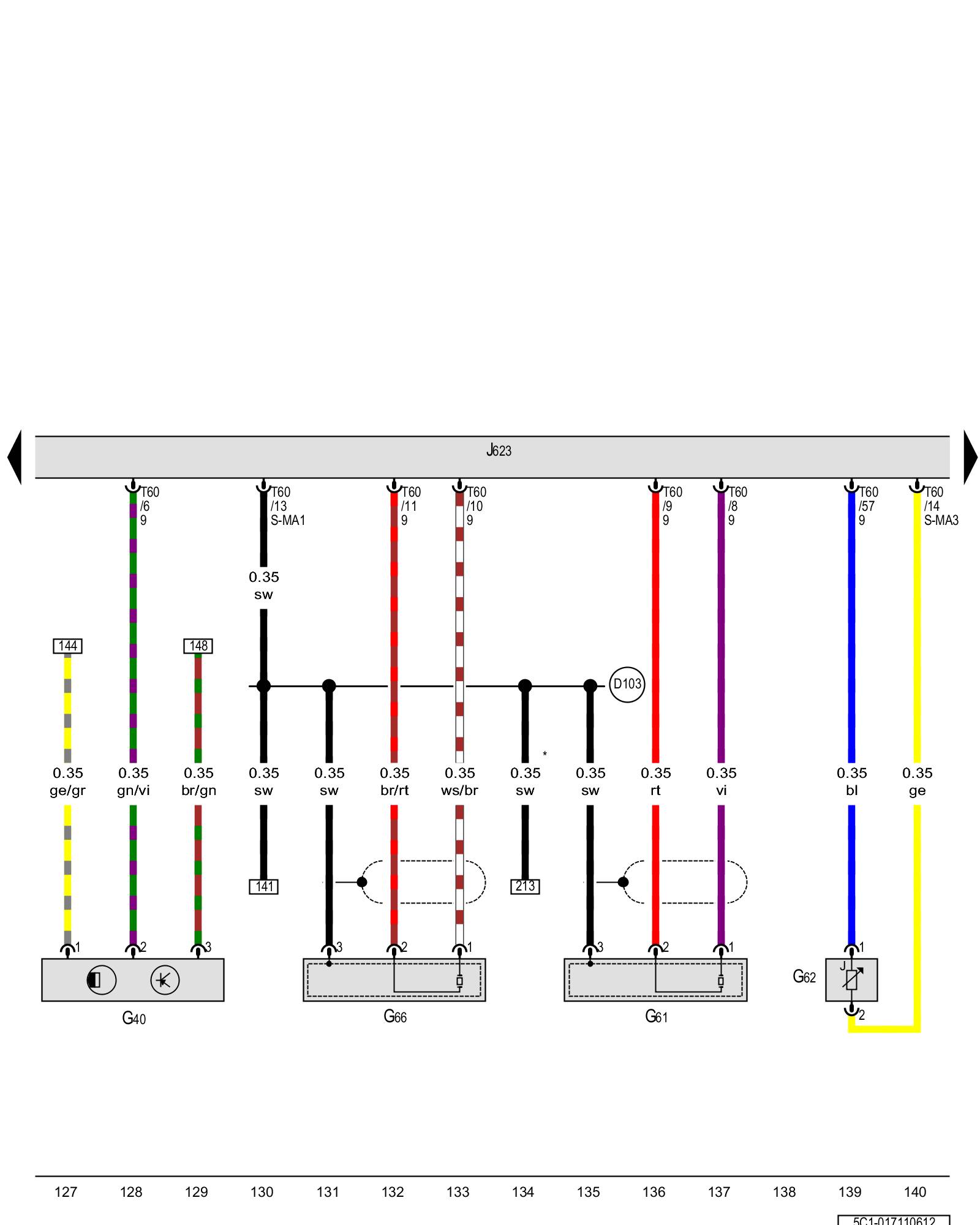

Diagram 17/11 (Tracks 127-140)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Camshaft position sensor, Knock sensor 1, Engine coolant temperature sensor, Knock sensor 2, Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G40 - Camshaft position sensor Locations [1][2]Camshaft Position Sensor

G61 - Knock sensor 1 Locations [1][2]Diagrams

G62 - Engine coolant temperature sensor Locations Engine Coolant Temperature Sensor -G62-

G66 - Knock sensor 2 2.5L CBTA and CBUA [1][2]Diagrams

J623 - Engine control module Locations

T60 - 60-pin connector

(D103) - Connection 3 (in engine compartment wiring harness)

* - Depending on equipment
