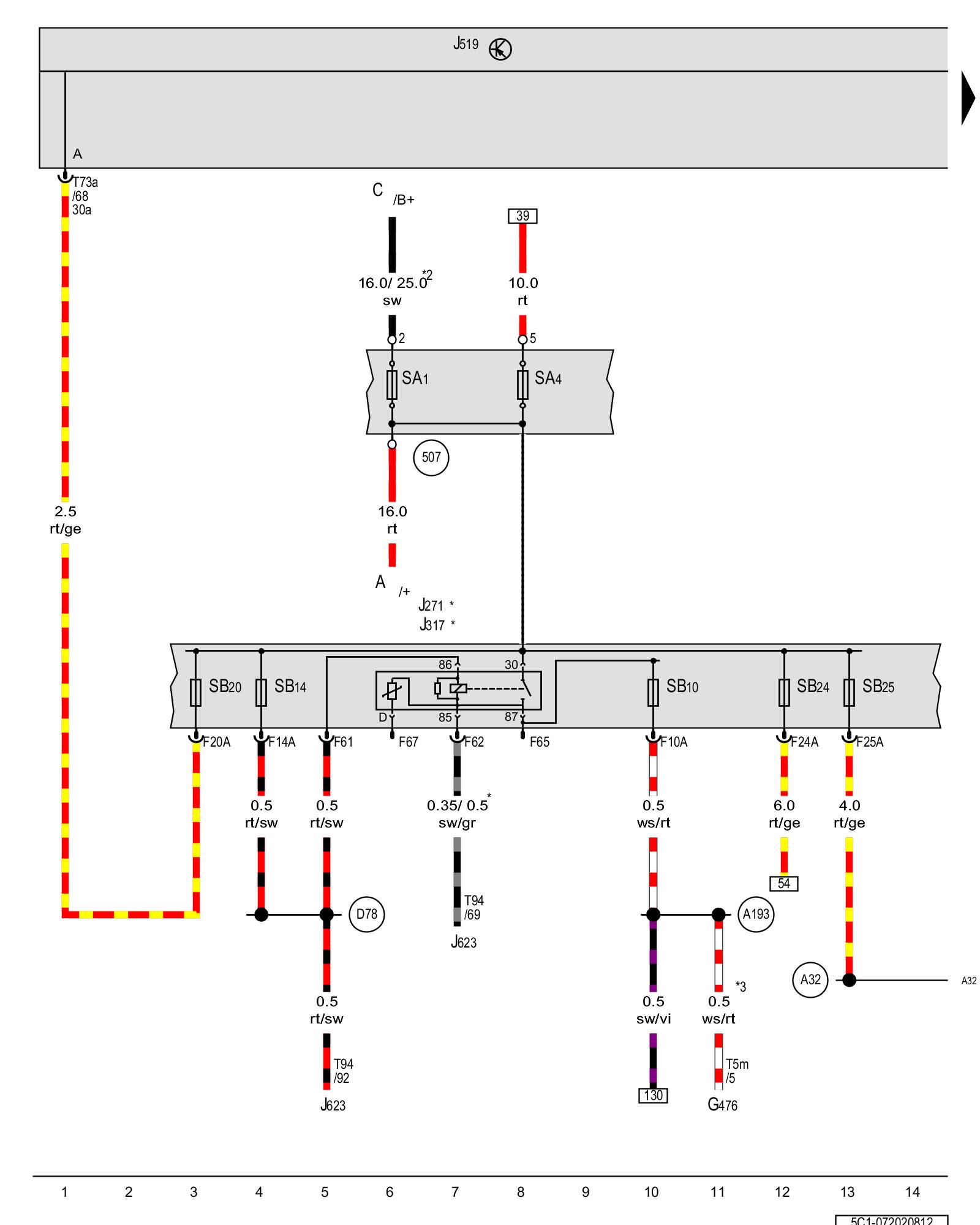

Diagram 72/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Motronic engine control module power supply relay, Terminal 30 power supply relay, Vehicle electrical system control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

C - Generator

G476 - Clutch position sensor Locations [1][2]Clutch Pedal Position Sensor / Switch

J271 - Motronic engine control module power supply relay Relay Arrangements on the Electronics Box

J317 - Terminal 30 power supply relay Relay Arrangements on the Electronics Box

J519 - Vehicle electrical system control module Locations Control modules in interior

J623 - Engine control module Locations

SA1 - Fuse 1 (on fuse panel A) Overview Of Fuses (SA), (SB), (SC)

SA4 - Fuse 4 (on fuse panel A) Overview Of Fuses (SA), (SB), (SC)

SB10 - Fuse 10 (on fuse panel B) Overview Of Fuses (SA), (SB), (SC)

SB14 - Fuse 14 (on fuse panel B) Overview Of Fuses (SA), (SB), (SC)

SB20 - Fuse 20 (on fuse panel B) Overview Of Fuses (SA), (SB), (SC)

SB24 - Fuse 24 (on fuse panel B) Overview Of Fuses (SA), (SB), (SC)

SB25 - Fuse 25 (on fuse panel B) Overview Of Fuses (SA), (SB), (SC)

T5m - 5-pin connector

T73a - 73-pin connector

T94 - 94-pin connector

(507) - Terminal 30 threaded connection (on battery fuse holder)

(A32) - Positive connection (30) (in instrument panel wiring harness)

(A193) - Connection 87a (in instrument panel wiring harness)

(D78) - Positive connection 1 (30a) (in engine compartment wiring harness)

* - Refer to applicable engine wiring diagram

*2 - Depending on equipment

*3 - Only for vehicles with a manual transmission

Next Diagram 72/3 (Tracks 15-28)
