Diagram 2/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

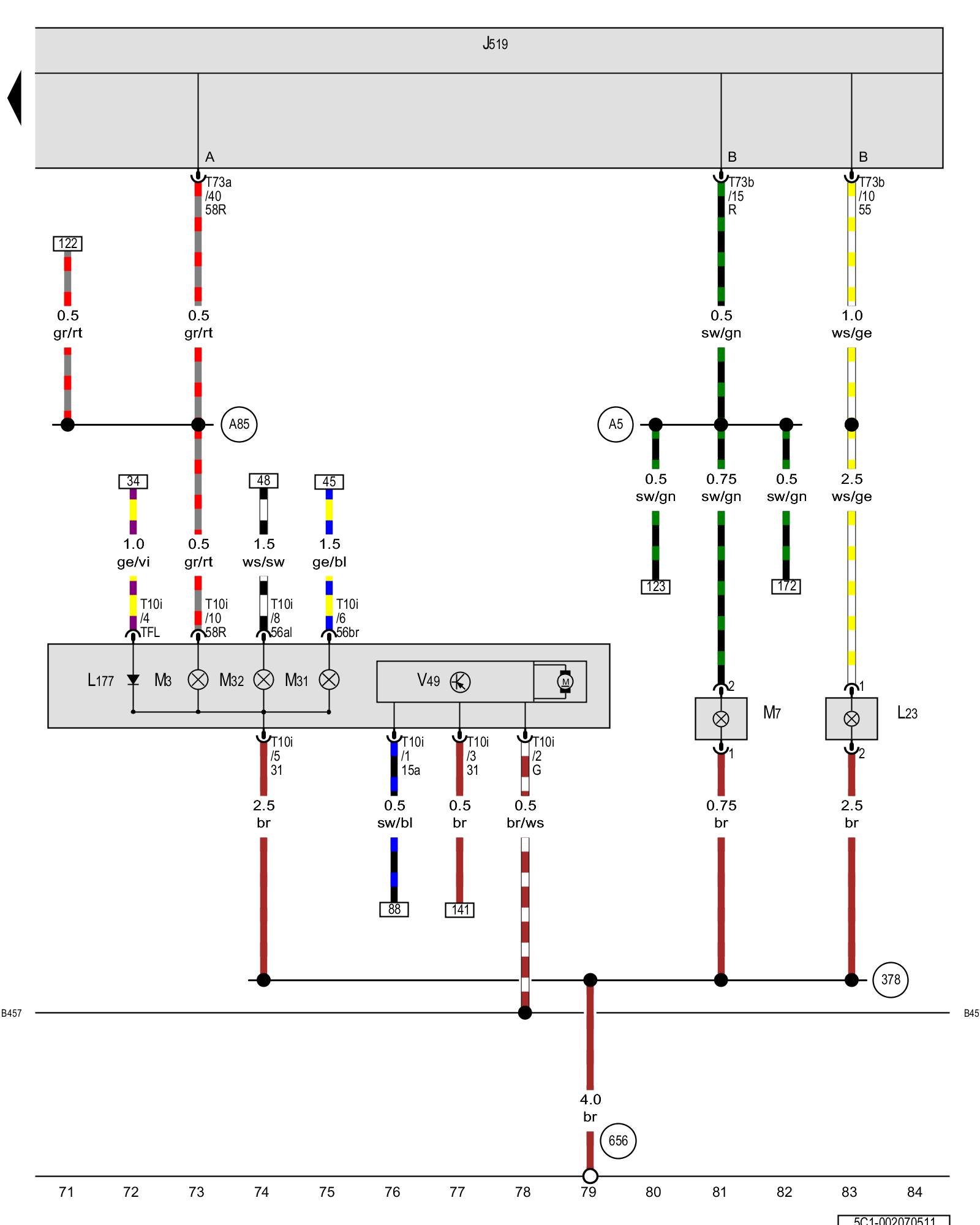

Vehicle electrical system control module, Right front fog lamp bulb, Right LED daytime running lamp and parking lamp LED module, Right side marker lamp bulb, Right front turn signal bulb, Right low beam headlamp bulb, Right high beam headlamp bulb





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle electrical system control module

L23 - Right front fog lamp bulb

L177 - Right LED daytime running lamp and parking lamp LED module

M3 - Right side marker lamp bulb

M7 - Right front turn signal bulb

M31 - Right low beam headlamp bulb

M32 - Right high beam headlamp bulb

T10i - 10-pin connector

T73a - 73-pin connector

T73b - 73-pin connector

V49 - Right headlamp beam adjustment motor

(378) - Ground connection 13 (in main wiring harness)

(656) - Ground connection on right headlamp

(A5) - Right turn signal positive connection (in instrument panel wiring harness)

(A85) - Connection (58R) (in instrument panel wiring harness)

(B457) - Position sensor connection 1 (in main wiring harness)

Previous Diagram 2/6 (Tracks 57-70)

Next Diagram 2/8 (Tracks 85-98)
