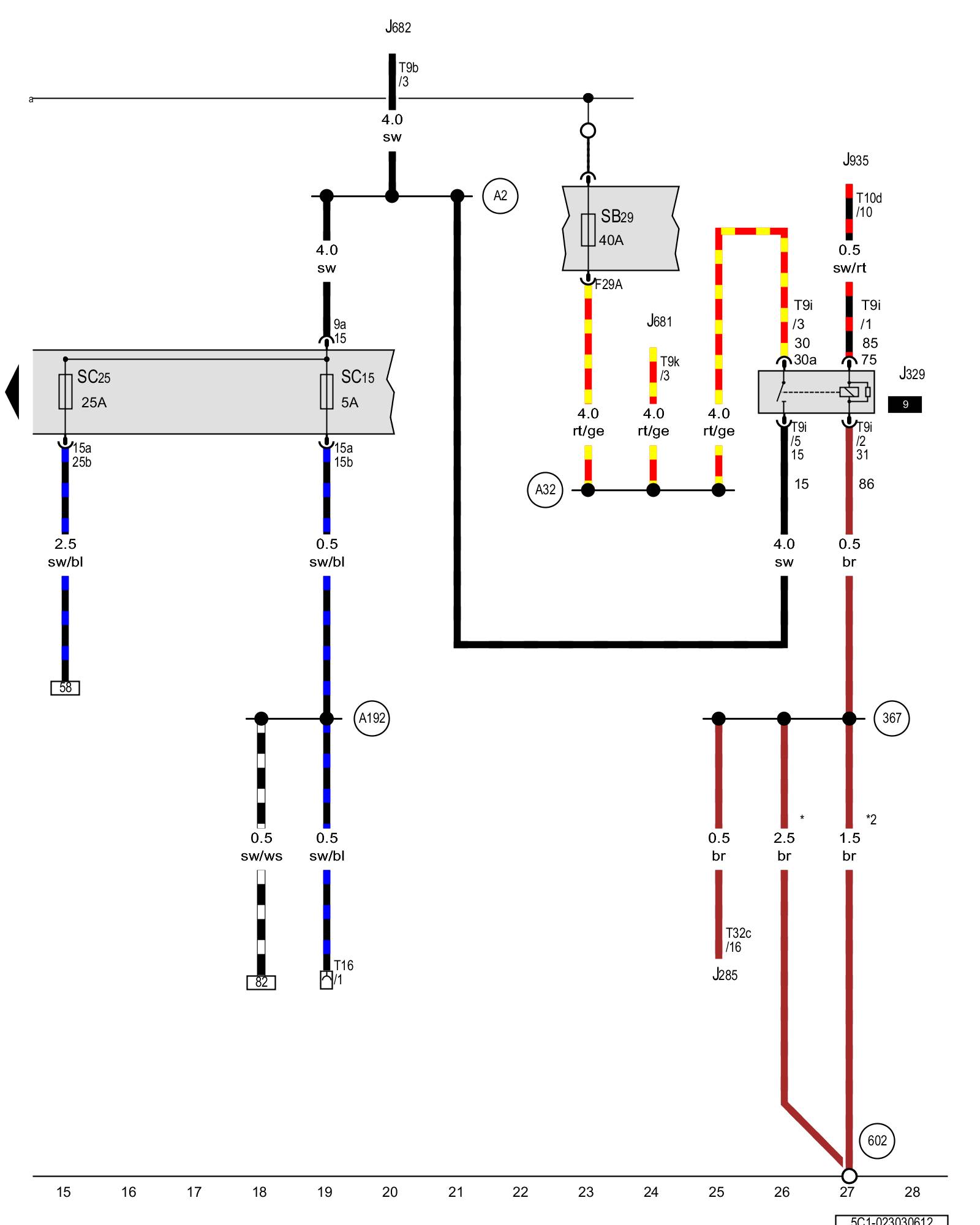

Diagram 23/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Terminal 15 power supply relay





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J285 - Instrument cluster control module Control modules in interior

J329 - Terminal 15 power supply relay Relay Carrier on Vehicle Electrical System Control Module

J681 - Terminal 15 power supply relay 2 Relay Carrier on Vehicle Electrical System Control Module

J682 - Terminal 50 power supply relay Relay Carrier on Vehicle Electrical System Control Module

J935 - Converter box Relay Carrier on Vehicle Electrical System Control Module

SC15 - Fuse 15 (on fuse panel C) Overview Of Fuses (SA), (SB), (SC)

SC25 - Fuse 25 (on fuse panel C) Overview Of Fuses (SA), (SB), (SC)

SB29 - Fuse 29 (on fuse panel B) Overview Of Fuses (SA), (SB), (SC)

T9b - 9-pin connector

T9i - 9-pin connector

T9k - 9-pin connector

T10d - 10-pin connector

T16 - 16-pin connector

T32c - 32-pin connector

(367) - Ground connection 2 (in main wiring harness)

(602) - Ground connection in left front footwell Locations

(A2) - Positive connection (15) (in instrument panel wiring harness)

(A32) - Positive connection (30) (in instrument panel wiring harness)

(A192) - Positive connection 3 (15a) (in instrument panel wiring harness)

* - from December 2011

*2 - Through December 2011
