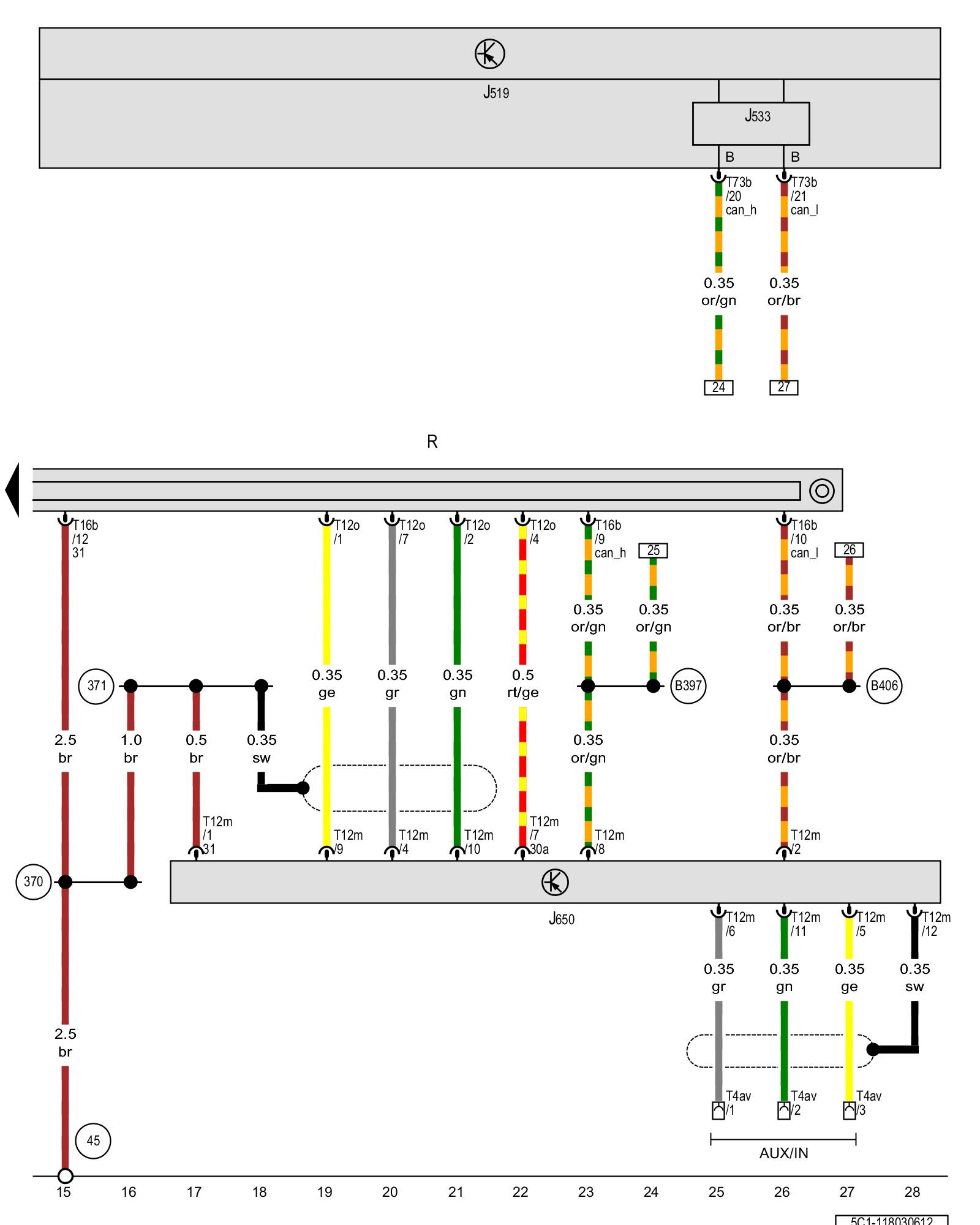

Diagram 118/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle electrical system control module, Data bus on board diagnostic interface, Multimedia system control module, Radio





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle electrical system control module Locations Control modules in interior

J533 - Data bus on board diagnostic interface

J650 - Multimedia system control module Radio/Navigation System Overview Control modules in interior

R - Radio

T4av - 4-pin connector

T12m - 12-pin connector

T12o - 12-pin connector

T16b - 16-pin connector

T73b - 73-pin connector

(45) - Ground connection behind instrument panel, center Locations

(370) - Ground connection 5 (in main wiring harness)

(371) - Ground connection 6 (in main wiring harness)

(B397) - Comfort system CAN bus high connection 1 (in main wiring harness)

(B406) - Comfort system CAN bus low connection 1 (in main wiring harness)

Previous Diagram 118/2 (Tracks 1-14)
