Outer Window Recess Seal

Outer Window Recess Seal

Removing

• The seal has a metal insert in the center.

• If it gets bent, it will not possible to straighten it out again. It will remain "wavy".

• This why the seal must be removed evenly without bending it.

• The following describes removing and installing the right outer window shaft seal only. Removing and installing the left outer window shaft seal is identical.






- Lower the door window all the way.

- Remove the exterior mirror. Refer to => [ Exterior Rearview Mirror ] Exterior Rearview Mirror.

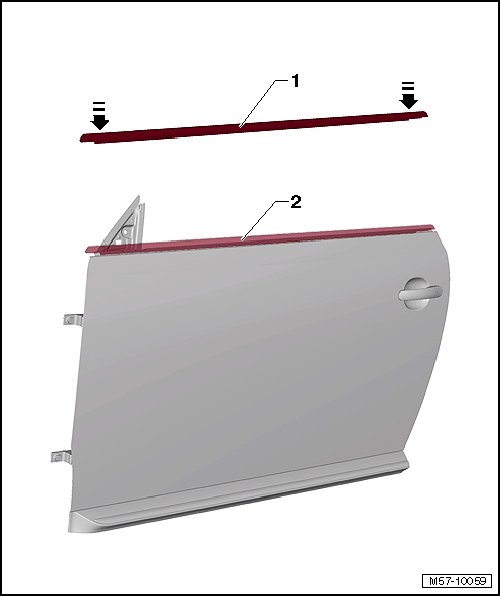

- Remove the seal - 1 - evenly from the door flange - 2 - - arrows -.

Installation






- Position the seal - 1 - on the B-pillar and push it evenly by hand onto the door flange - 2 - - arrows -.

- Install exterior mirror. Refer to => [ Exterior Rearview Mirror ] Exterior Rearview Mirror.
