Rear Name Plate Dimensions

Rear Name Plate Dimensions

• There are varying name plate (i.e. country-specific) This applies for all name plates with the illustrated dimensions.

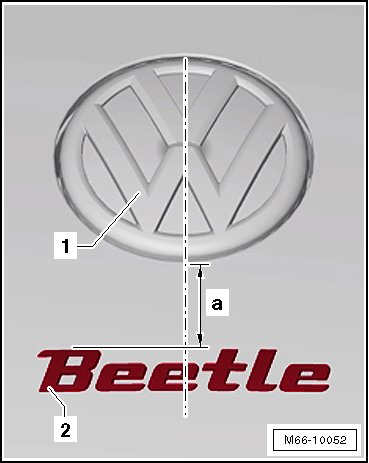

1 unlocking element with emblem
2 Name plate
(a) 46 mm from the lower edge of the emblem to the upper edge of the name plate

The name plate - 2 - is aligned with the rear lid for the emblem in the unlocking element- 1 -.
