Parking Aid Overview

Parking Aid Overview

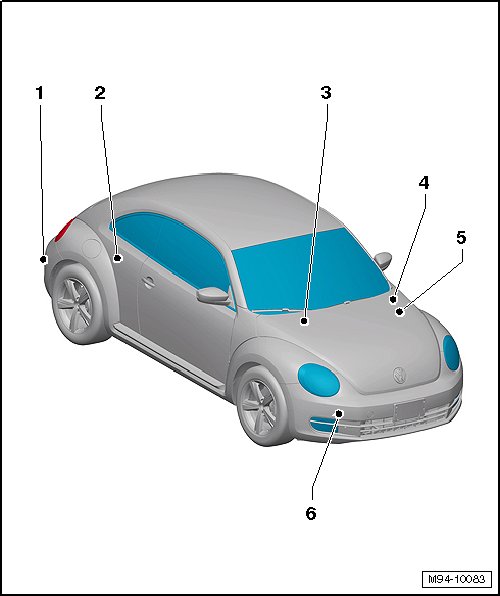

1 Parking Aid Sensor in Rear Bumper Cover

• Left Rear Parking Aid Sensor (G203)

• Left Rear Center Parking Aid Sensor (G204)

• Right Rear Center Parking Aid Sensor (G205)

• Right Rear Parking Aid Sensor (G206)

• Removing and installing, refer to => [ Rear Parking Aid Sensor, Removing and Installing ] Rear Parking Aid Sensor, Removing and Installing.

• Checking, refer to => [ Rear Parking Aid Sensor, Checking ] Rear Parking Aid Sensor, Checking.

• Replacing, refer to => [ Rear Parking Aid Sensor, Removing and Installing ] Rear Parking Aid Sensor, Removing and Installing.

2 Rear Parking Aid Warning Buzzer (H15)

• Behind the luggage compartment right side trim

• Removing and installing, refer to => [ Rear Parking Aid Warning Buzzer (H15), Removing and Installing ] Rear Parking Aid Warning Buzzer (H15), Removing and Installing.

• Adapting the volume, refer to => [ Rear Parking Aid Warning Buzzer (H15), Adjusting Volume ] Rear Parking Aid Warning Buzzer (H15), Adjusting Volume.

• Adapting the tone, refer to => [ Rear Parking Aid Warning Buzzer (H15), Adjusting Tone ] Rear Parking Aid Warning Buzzer (H15), Adjusting Tone.

• Check with the output diagnostic test mode, refer to => [ Parking Aid System Output Diagnostic Test Mode (DTM) ] Parking Aid System Output Diagnostic Test Mode (DTM).

3 Parking Aid Button (E266)

• In the center console in front of the selector lever.

• Removing and installing, refer to => [ Parking Aid Button (E266) ] Parking Aid Button (E266).

4 Parking Aid Control Module (J446)

• Via the relay panel underneath the driver side instrument panel.

• Removing and installing, refer to => [ Parking Aid Control Module (J446), removing and installing ] Parking Aid Control Module (J446), removing and installing.

• Coding, refer to => [ Parking Aid Control Module (J446), Coding ] Parking Aid Control Module (J446), Coding.

• Adapting the optical illustration, refer to => [ Adapting the Optical Illustration ] Adapting the Optical Illustration.

• Output Diagnostic Test Mode (DTM), refer to => [ Parking Aid System Output Diagnostic Test Mode (DTM) ] Parking Aid System Output Diagnostic Test Mode (DTM).

5 Front Parking Aid Warning Buzzer (H22)

• On the relay panel under the driver side instrument panel

• Removing and installing, refer to => [ Front Parking Aid Warning Buzzer (H22), removing and installing ] Front Parking Aid Warning Buzzer (H22), removing and installing.

• Adapting the volume, refer to => [ Front Parking Aid Warning Buzzer (H22), Adjusting Volume ] Front Parking Aid Warning Buzzer (H22), Adjusting Volume.

• Adapting the tone, refer to => [ Front Parking Aid Warning Buzzer (H22), Adjusting Tone ] Front Parking Aid Warning Buzzer (H22), Adjusting Tone.

• Check with the output diagnostic test mode, refer to => [ Parking Aid System Output Diagnostic Test Mode (DTM) ] Parking Aid System Output Diagnostic Test Mode (DTM).

6 Parking Aid Sensor Inside The Front Bumper Cover

• Left Front Parking Aid Sensor (G255)

• Left Front Center Parking Aid Sensor (G254)

• Right Front Center Parking Aid Sensor (G253)

• Right Front Parking Aid Sensor (G252)

• Removing and installing, refer to => [ Front Parking Aid Sensor, Removing and Installing ] Front Parking Aid Sensor, Removing and Installing.

• Checking, refer to => [ Front Parking Aid Sensor, Checking ] Front Parking Aid Sensor, Checking.

• Replacing, refer to => [ Front Parking Aid Sensor, Removing and Installing ] Front Parking Aid Sensor, Removing and Installing.
