Door Window Basic Height Adjustment

Door Window Basic Height Adjustment

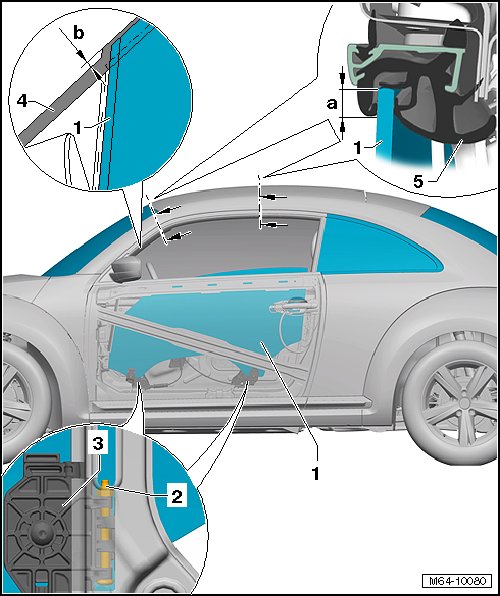

• Screw - 2 - can be adjusted by a total of 16 revolutions. For the basic adjustment, the center position is set.

• One turn = 1 mm adjustment.

• Right rotation = door window up, left rotation = door window down.

• New window regulators are delivered with the correct basic adjustment.






- Lower the door window - 1 - all the way to the basic setting.

- Press the switch again. The door window moves to the end stop.

- Remove the cap on the underside of the door.

- Front and rear adjusting bolts - 2 - all the way down.

- Front and rear adjusting bolts - 2 - exactly 8 turns upward.

The center position is now reached. The basic height adjustment is completed.
