Differential: Tools and Equipment

Special Tools

Special tools, testers and auxiliary items required

• Punch (VW 408 A)

• Thrust Disc (VW 412)

• Tube 60 mm Dia. (VW 415 A)

• Thrust Piece (40-105)

• Drip Tray for VAS 6100 (VAS 6208)

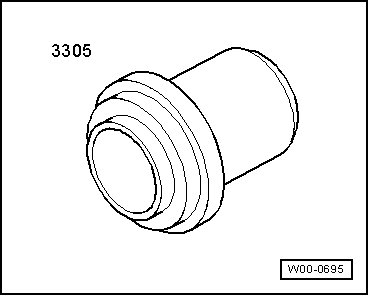

• Thrust Piece (3305)






• Inductive Heat Unit (VAS 6414)











Special tools, testers and auxiliary items required

• Transmission Support (VW 353)

• Magnetic Plate 50 mm Dia. (VW 385/17)

• Dial Gauge Holder (VW 387)

• Thrust Plate (VW 402)

• Punch (VW 408 A)

• Thrust Pad (3005)






Special tools, testers and auxiliary items required

• Slide Hammer-Complete Set (VW 771)

• Additional Part for VW 771 (VW 771/37)

• Thrust Piece (3305)

• Torque Wrench (5-50 Nm) (V.A.G 1331)

• Torque Wrench (40-200 Nm) (V.A.G 1332)






Special tools, testers and auxiliary items required

• Tube (3259)

• Tube (3296)

• Press Tool (3345)

• Tapered Roller Bearing Puller (V.A.G 1582)

• Attachment to VAG 1582 (V.A.G 1582/6A)

• - 1 - Kukko Extractor 46-58 mm (21/7)

• - 2 - Kukko Puller (65-160 mm) (18/1)

• - 3 - Kukko Separating Tool 12-75 mm (17/1)

• - 4 - Kukko Support (22/2)
