Controls, Housing

Special Tools

Special tools, testers and auxiliary items required

• Pipe Cutter (VAS 6056/2)

• Adapter for Oil Filling (VAS 6262/6)

• Engine Sling (2024 A)

• Shackle (10-222 A/12)

• Transmission Support Jig (3336)

• Transmission Support (3282)

• Adjustment Plate (3282/42 A)

• Pin (3282/29)

• Torque Wrench (40-200 Nm) (V.A.G 1332)

• Engine-/Gearbox Jack (V.A.G 1383 A)

• Hose Clamps up to 40 mm (3093)

• Transportation Lock (T10404)

• Hose Clamp Pliers (V.A.G 1275)






• Engine Bung Set (VAS 6122)






• Sleeve (VW 423)






• Pulling Hook (T20143)






• Release Tool (T10465)






• Locating Pins (T10096)






• Special Wrench, Long Reach (T10054).






• Trim Removal Wedge (3409)











Special tools, testers and auxiliary items required

• Torque Wrench (5-50 Nm) (V.A.G 1331)

• Use Oil Collecting and Extracting Device (V.A.G 1782)

• Vehicle Diagnostic Tester

• Drip Tray for VAS 6100 (VAS 6208)

• Adapter for Oil Filling (VAS 6262 A)

• Adapter for Filling ATF Oil (VAS 6262/2)

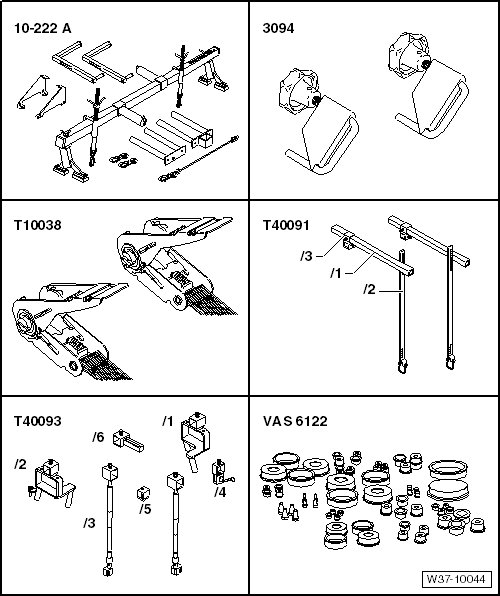

Special tools, testers and auxiliary items required

• Engine Support Bridge (10-222 A)

• Hose Clamps up to 25 mm Dia. (3094)

• Tensioning Strap (T10038)

• Engine Support Basic Set (T40091)

• Engine Support Supplement Set (T40093)

• Engine Bung Set (VAS 6122)
