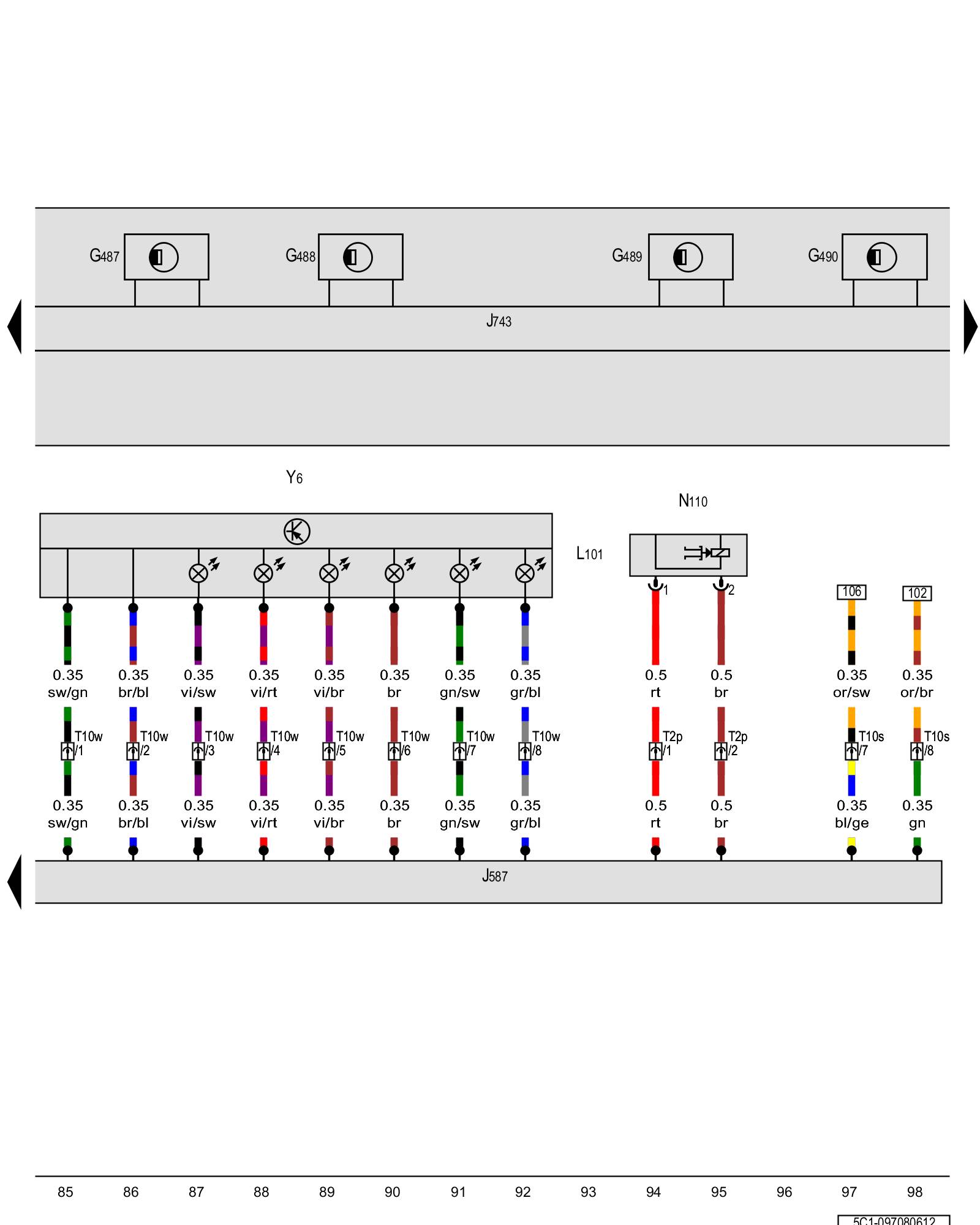

Diagram 97/8 (Tracks 85-98)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Selector lever sensor system control module, DSG transmission Mechatronic, Shift lock solenoid, Transmission range display





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G487 - Gear position distance sensor 1 Locations

G488 - Gear position distance sensor 2 Locations

G489 - Gear position distance sensor 3 Locations

G490 - Gear position distance sensor 4 Locations

J587 - Selector lever sensor system control module Locations

J743 - DSG transmission Mechatronic Locations DSG Transmission Mechatronic -J743-

L101 - Selector lever scale illumination bulb

N110 - Shift lock solenoid Locations Locations

T2p - Double connector

T10s - 10-pin connector

T10w - 10-pin connector

Y6 - Transmission range display
