Diagram 97/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Automatic transmission hydraulic pressure sensor 1, Automatic transmission hydraulic pressure sensor 2, DSG transmission Mechatronic, Solenoid valve 1, Solenoid valve 2, Solenoid valve 3, Solenoid valve 4, Solenoid valve 5





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

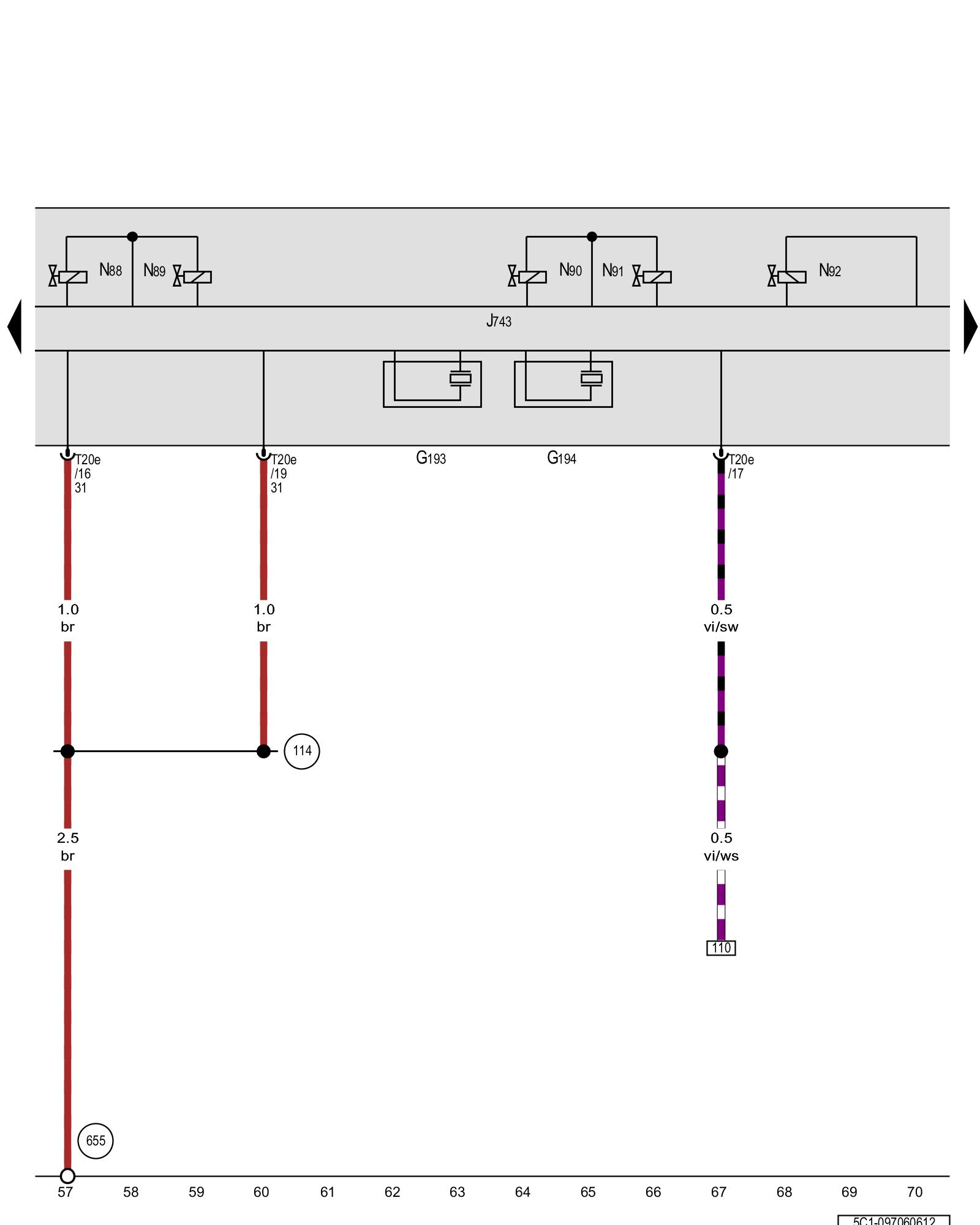

G193 - Automatic transmission hydraulic pressure sensor 1

G194 - Automatic transmission hydraulic pressure sensor 2

J743 - DSG transmission Mechatronic Locations DSG Transmission Mechatronic -J743-

N88 - Solenoid valve 1 Locations Valve body solenoids: N88, N89, N90, N91, N92, N93, N282, N283

N89 - Solenoid valve 2 Locations Valve body solenoids: N88, N89, N90, N91, N92, N93, N282, N283

N90 - Solenoid valve 3 Locations Valve body solenoids: N88, N89, N90, N91, N92, N93, N282, N283

N91 - Solenoid valve 4 Locations Valve body solenoids: N88, N89, N90, N91, N92, N93, N282, N283

N92 - Solenoid valve 5 Locations Valve body solenoids: N88, N89, N90, N91, N92, N93, N282, N283

T20e - 20-pin connector

(114) - Ground connection (in automatic transmission wiring harness)

(655) - Ground connection on left headlamp Locations
