Electronic Components

Electronic Components

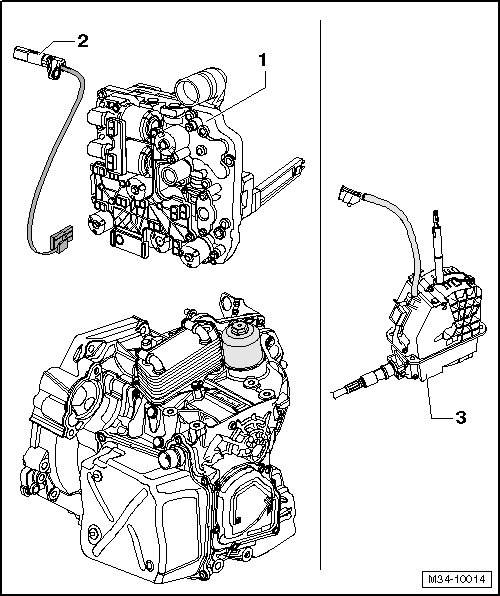

The electronic components are located inside the transmission.

The selector lever sensor system control module (J587) and the shift lock solenoid (N110) are located on the selector lever.






1 DSG Transmission Mechatronic (J743)

• Installed behind the large cover.

• Removing and installing, refer to one of the following:

With the transmission installed, refer to => [ DSG Transmission Mechatronic (J743), Transmission Installed ] DSG Transmission Mechatronic (J743), Transmission Installed.

With the transmission removed, refer to => [ DSG Transmission Mechatronic (J743), Transmission Removed ] DSG Transmission Mechatronic (J743), Transmission Removed.

2 Transmission Input Speed Sensor (G182) and Clutch Oil Temperature Sensor (G509)

• The DSG transmission Mechatronic must be removed first before the sensor can be removed. Refer to => [ DSG Transmission Mechatronic (J743), Transmission Installed ] DSG Transmission Mechatronic (J743), Transmission Installed.

3 Selector Lever (E313)
