Diagram 36/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle electrical system control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

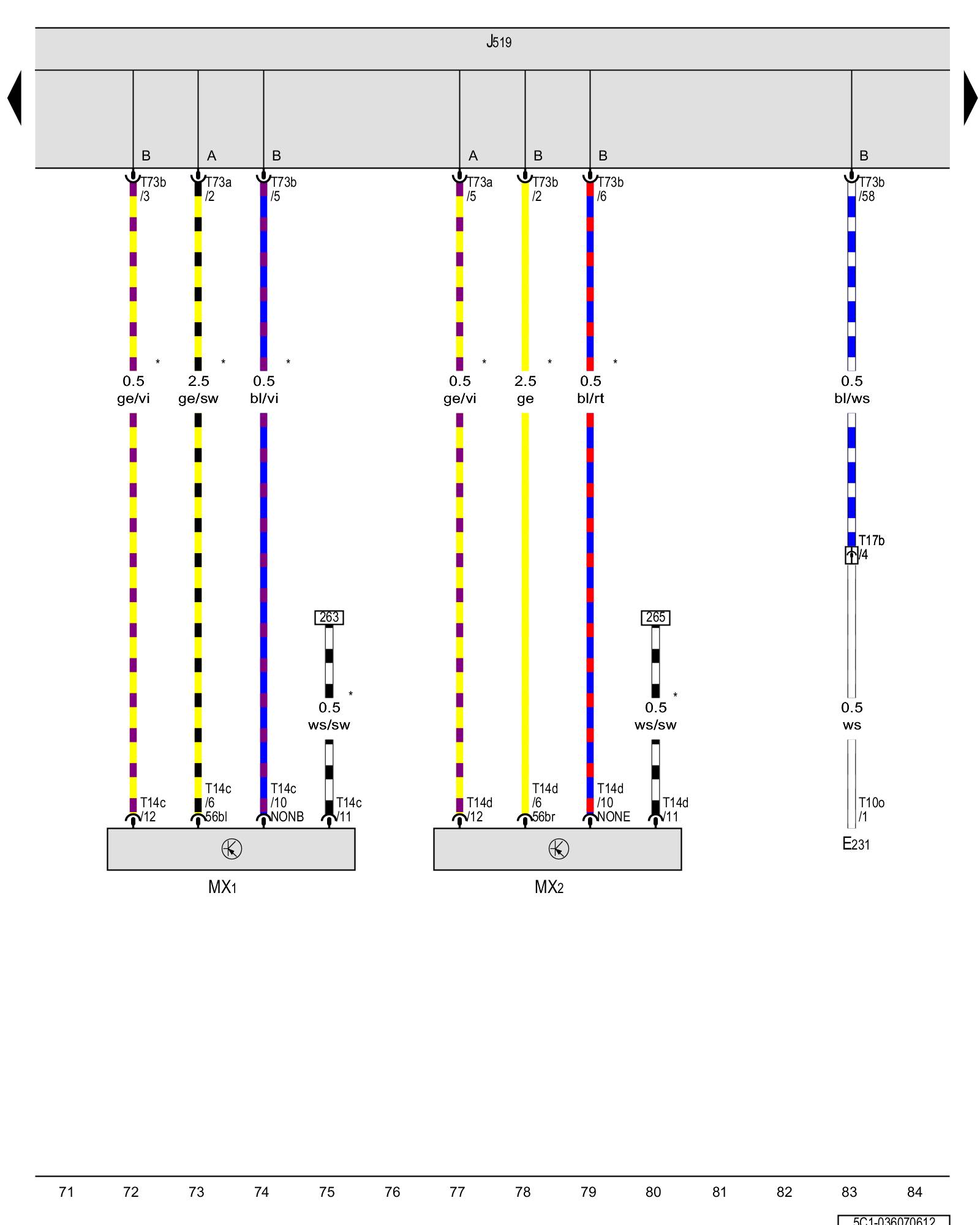

E231 - Exterior rearview mirror heating switch

J519 - Vehicle electrical system control module Locations Control modules in interior

MX1 - Left front headlamp

MX2 - Right front headlamp

T10o - 10-pin connector

T14c - 14-pin connector

T14d - 14-pin connector

T17b - 17-pin connector

T73a - 73-pin connector

T73b - 73-pin connector

* - Only for vehicles without US equipment

Previous Diagram 36/6 (Tracks 57-70)

Next Diagram 36/8 (Tracks 85-98)
