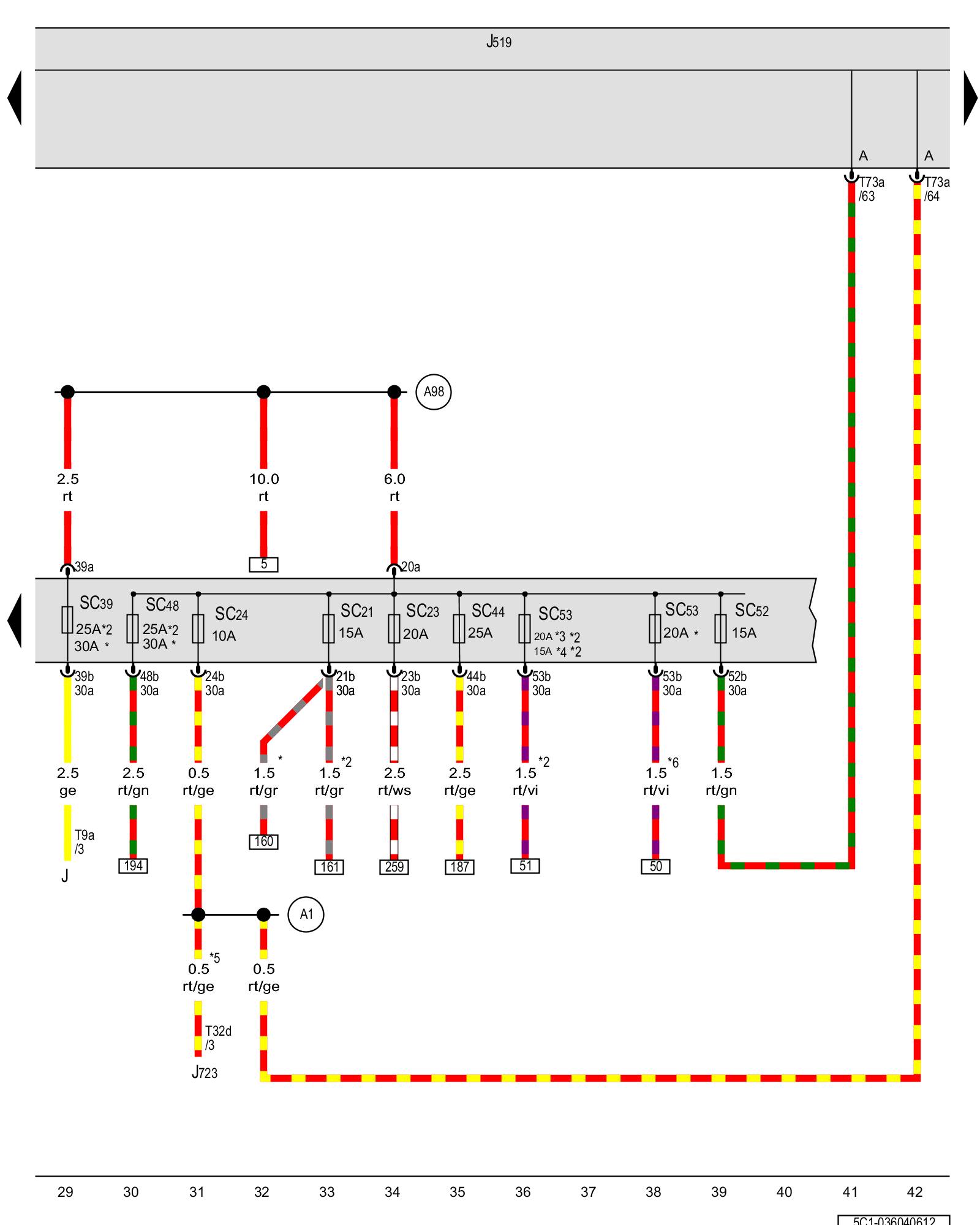

Diagram 36/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle electrical system control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J - Headlamp dimmer/flasher relay Relay Carrier on Vehicle Electrical System Control Module

J519 - Vehicle electrical system control module Locations Control modules in interior

J723 - Keyless access authorization antenna reader Control modules in interior

SC21 - Fuse 21 (on fuse panel C) Overview Of Fuses (SA), (SB), (SC)

SC23 - Fuse 23 (on fuse panel C) Overview Of Fuses (SA), (SB), (SC)

SC24 - Fuse 24 (on fuse panel C) Overview Of Fuses (SA), (SB), (SC)

SC39 - Fuse 39 (on fuse panel C) Overview Of Fuses (SA), (SB), (SC)

SC44 - Fuse 44 (on fuse panel C) Overview Of Fuses (SA), (SB), (SC)

SC48 - Fuse 48 (on fuse panel C) Overview Of Fuses (SA), (SB), (SC)

SC52 - Fuse 52 (on fuse panel C) Overview Of Fuses (SA), (SB), (SC)

SC53 - Fuse 53 (on fuse panel C) Overview Of Fuses (SA), (SB), (SC)

T9a - 9-pin connector

T32d - 32-pin connector

T73a - 73-pin connector

(A1) - Positive connection (30a) (in instrument panel wiring harness)

(A98) - Positive connection 4 (30) (in instrument panel wiring harness)

* - from December 2011

*2 - Through December 2011

*3 - Only for vehicles with dual tone horn

*4 - Only for vehicles with supertone horn

*5 - only for vehicles with access/start authorization system

*6 - Only for vehicles with super raised roof
