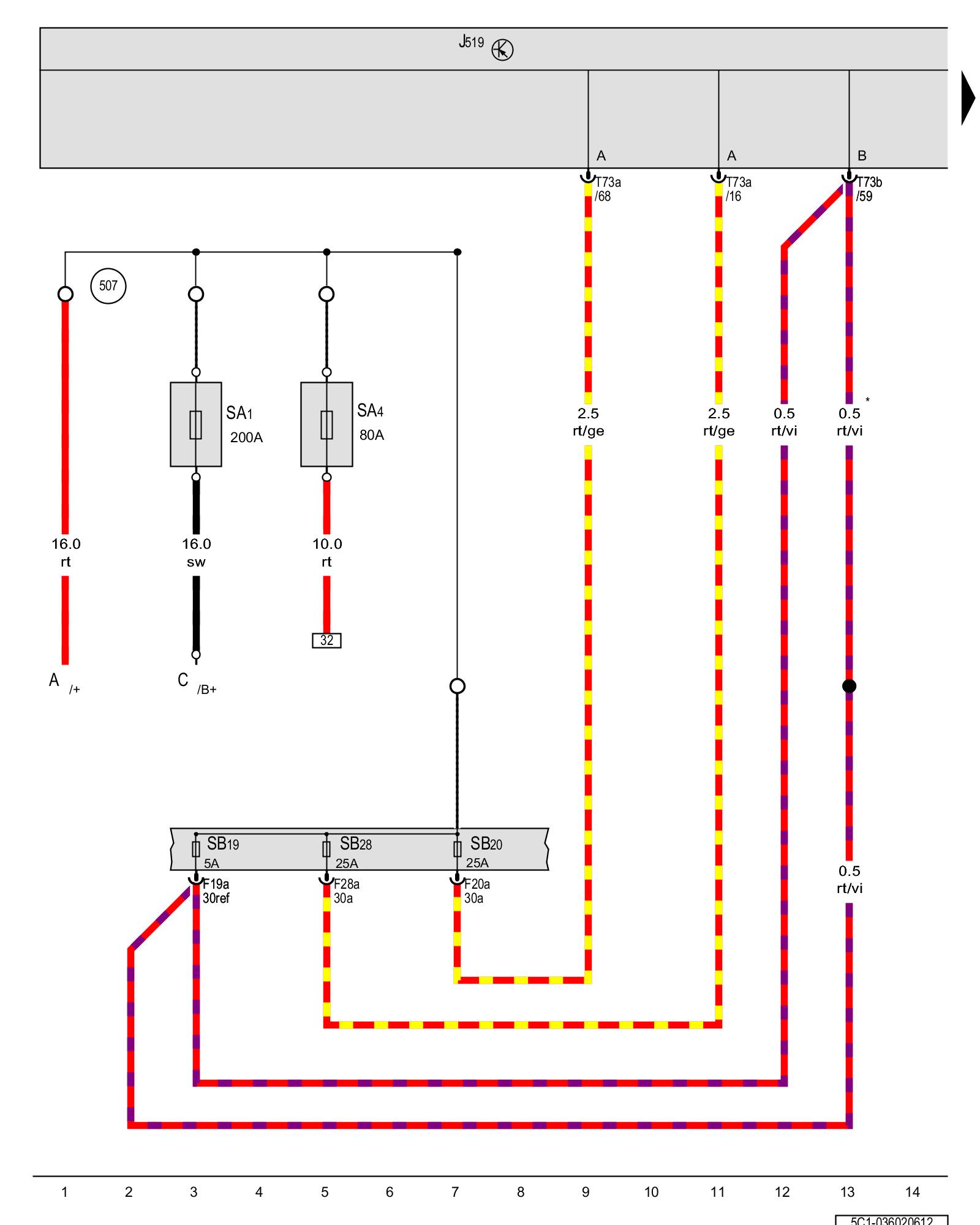

Diagram 36/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle electrical system control module, Fuse 19 (on fuse panel B), Fuse 20 (on fuse panel B), Fuse 28 (on fuse panel B)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

C - Generator

J519 - Vehicle electrical system control module Locations Control modules in interior

SA1 - Fuse 1 (on fuse panel A) Overview Of Fuses (SA), (SB), (SC)

SA4 - Fuse 4 (on fuse panel A) Overview Of Fuses (SA), (SB), (SC)

SB19 - Fuse 19 (on fuse panel B) Overview Of Fuses (SA), (SB), (SC)

SB20 - Fuse 20 (on fuse panel B) Overview Of Fuses (SA), (SB), (SC)

SB28 - Fuse 28 (on fuse panel B) Overview Of Fuses (SA), (SB), (SC)

T73a - 73-pin connector

T73b - 73-pin connector

(507) - Terminal 30 threaded connection (on battery fuse holder)

* - Only for vehicles with US equipment

Next Diagram 36/3 (Tracks 15-28)
