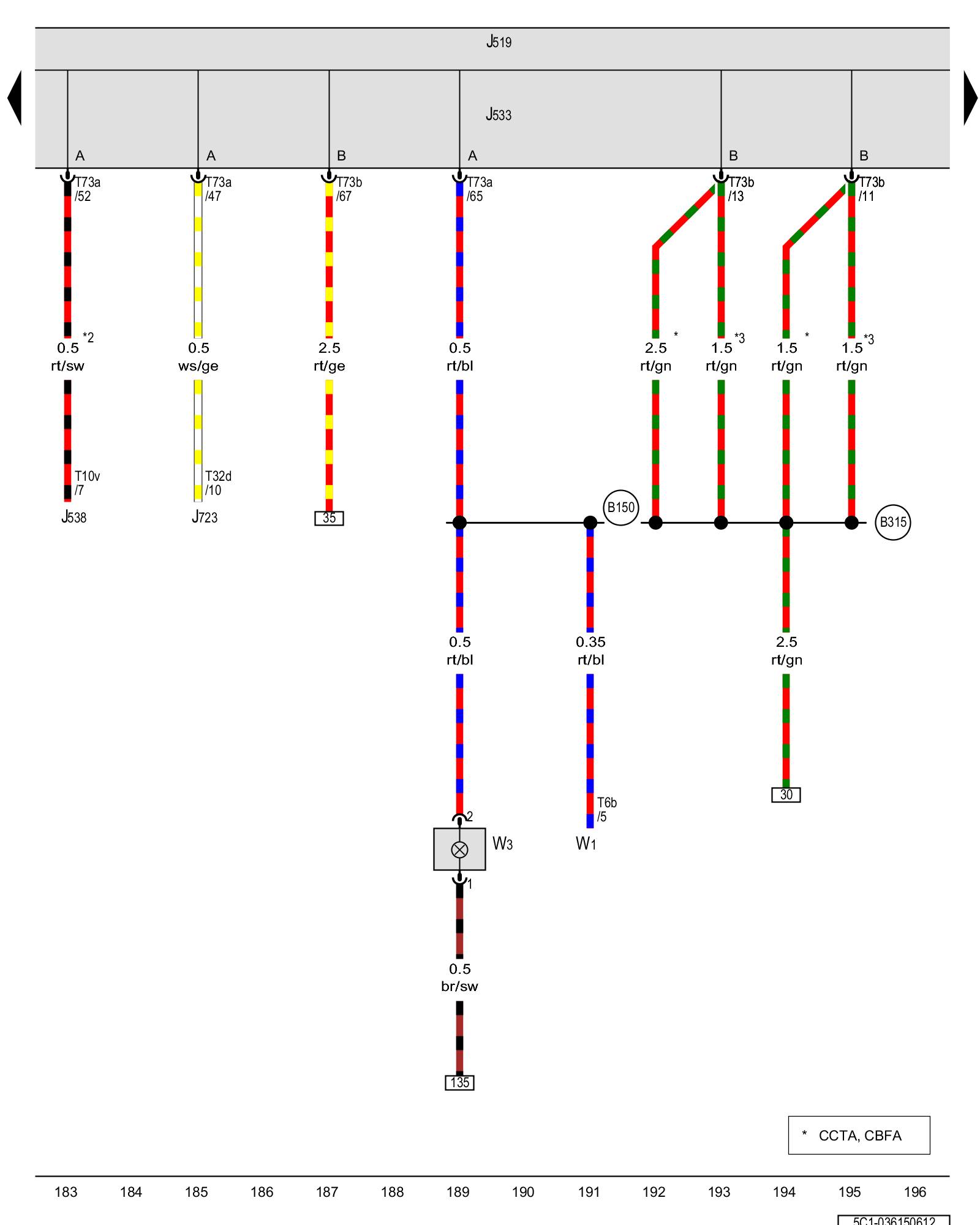

Diagram 36/15 (Tracks 183-196)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle electrical system control module, Data bus on board diagnostic interface, Luggage compartment lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle electrical system control module Locations Control modules in interior

J533 - Data bus on board diagnostic interface

J538 - Fuel pump control module Locations Control modules in interior

J723 - Keyless access authorization antenna reader Control modules in interior

T6b - 6-pin connector

T10v - 10-pin connector

T32d - 32-pin connector

T73a - 73-pin connector

T73b - 73-pin connector

W1 - Front interior lamp

W3 - Luggage compartment lamp

(B150) - Positive connection 2 (30a) (in interior wiring harness)

(B315) - Positive connection 1 (30a) (in main wiring harness)

* - from December 2011

*2 - Depending on equipment

*3 - Through December 2011
