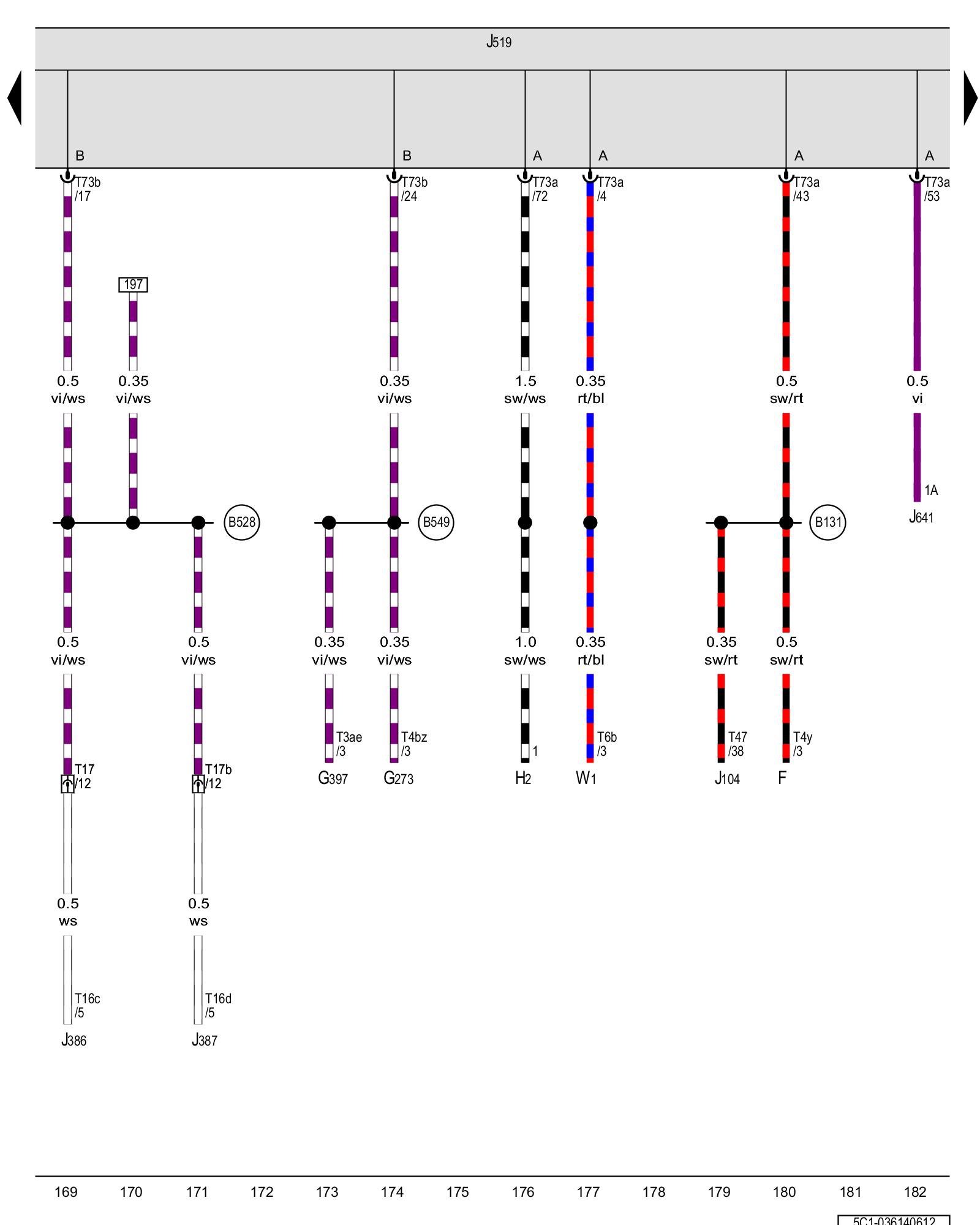

Diagram 36/14 (Tracks 169-182)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle electrical system control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F - Brake lamp switch Anti-Lock Brake System (ABS) Overview [1][2]Brake Light Switch

G273 - Interior monitoring sensor

G397 - Rain/light recognition sensor

H2 - High tone horn Locations

J104 - ABS control module Anti-Lock Brake System (ABS) Overview Locations [1][2]Diagrams

J386 - Driver door control module Locations Control modules in interior

J387 - Front passenger door control module Locations Control modules in interior

J519 - Vehicle electrical system control module Locations Control modules in interior

J641 - Alarm horn relay Relay Carrier on Vehicle Electrical System Control Module

T3ae - 3-pin connector

T4bz - 4-pin connector

T4y - 4-pin connector

T6b - 6-pin connector

T16c - 16-pin connector

T16d - 16-pin connector

T17 - 17-pin connector

T17b - 17-pin connector

T47 - 47-pin connector

T73a - 73-pin connector

T73b - 73-pin connector

W1 - Front interior lamp

(B131) - Connection 54 (in interior wiring harness)

(B528) - LIN bus connection 1 (in main wiring harness)

(B549) - LIN bus connection 2 (in main wiring harness)

Previous Diagram 36/13 (Tracks 155-168)

Next Diagram 36/15 (Tracks 183-196)
