Fuse assignment (SA)

Fuses

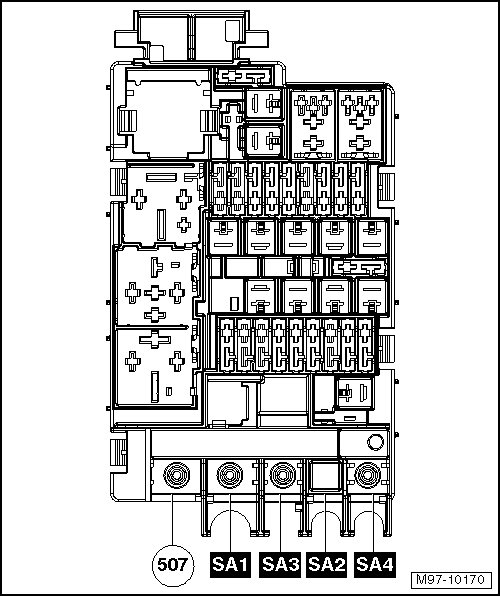

Fuse assignment (SA)








Fuse Colors
200 A - purple
150 A - gray
125 A - pink
100 A - blue
80 A - white
70 A - brown
60 A - yellow
50 A - red
40 A - green
30 A - orange

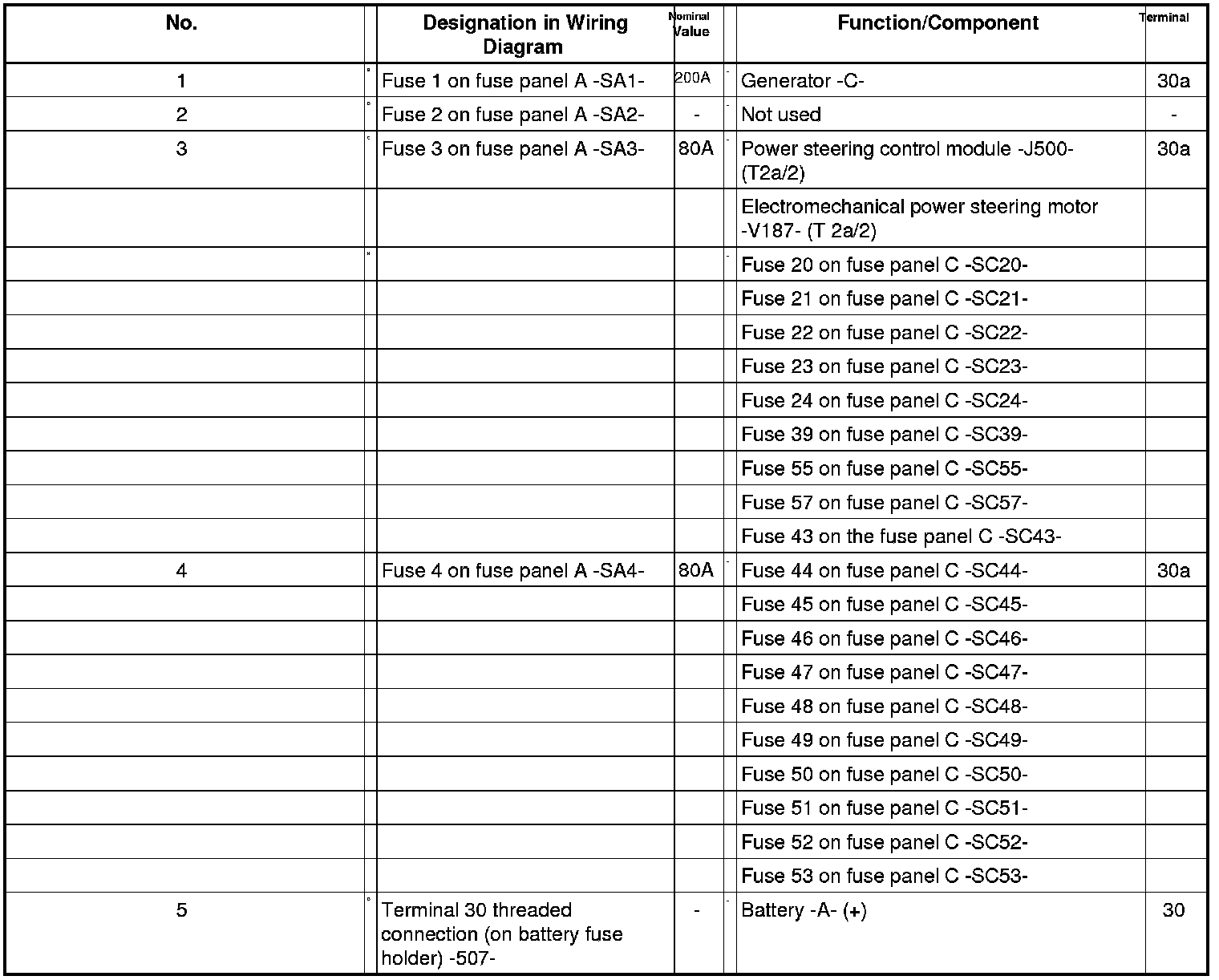

Fuse assignment (SA) on E-box low, from July 2011

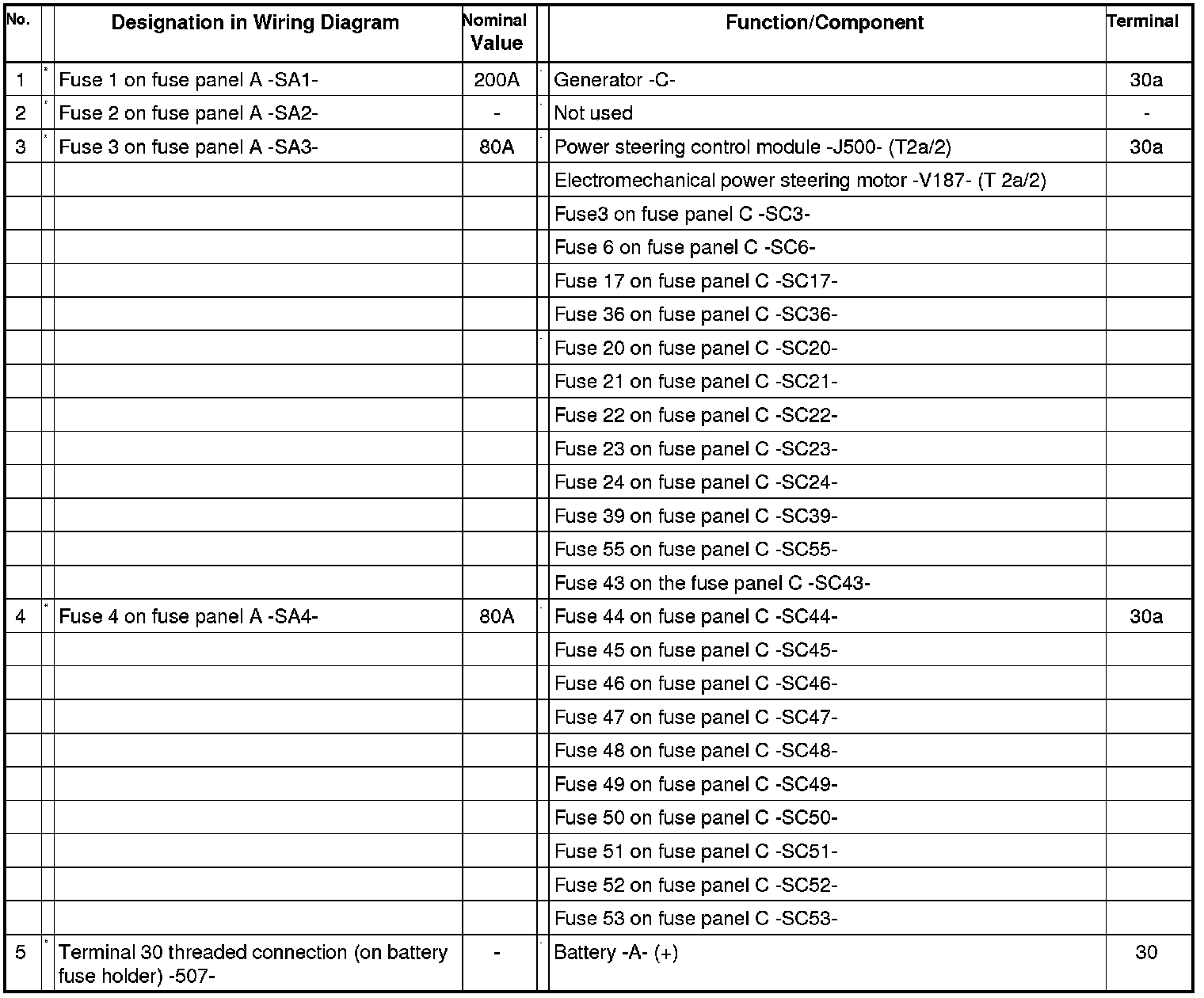

Fuse assignment (SA) on E-box low, from July 2012
