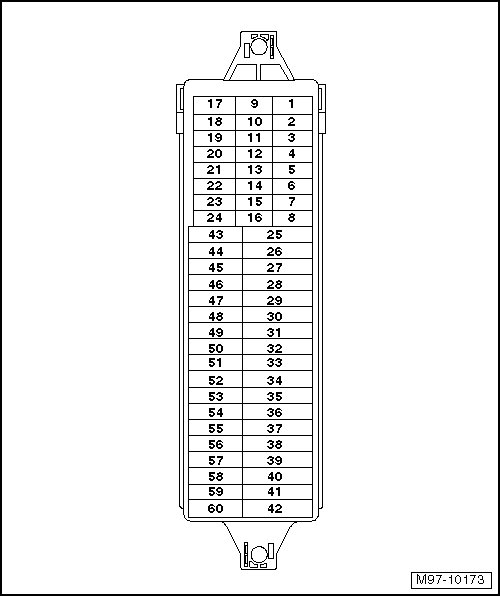

Fuse Arrangements (SC) on the fuse panel C on instrument panel on the driver's side

Fuses

Fuse Arrangements (SC) on the fuse panel C on instrument panel on the driver's side








Fuse Colors
30 A - green
25 A - white
20 A - yellow
15 A - blue
10 A - red
7.5 A - brown
5 A - light-brown
3 A - purple

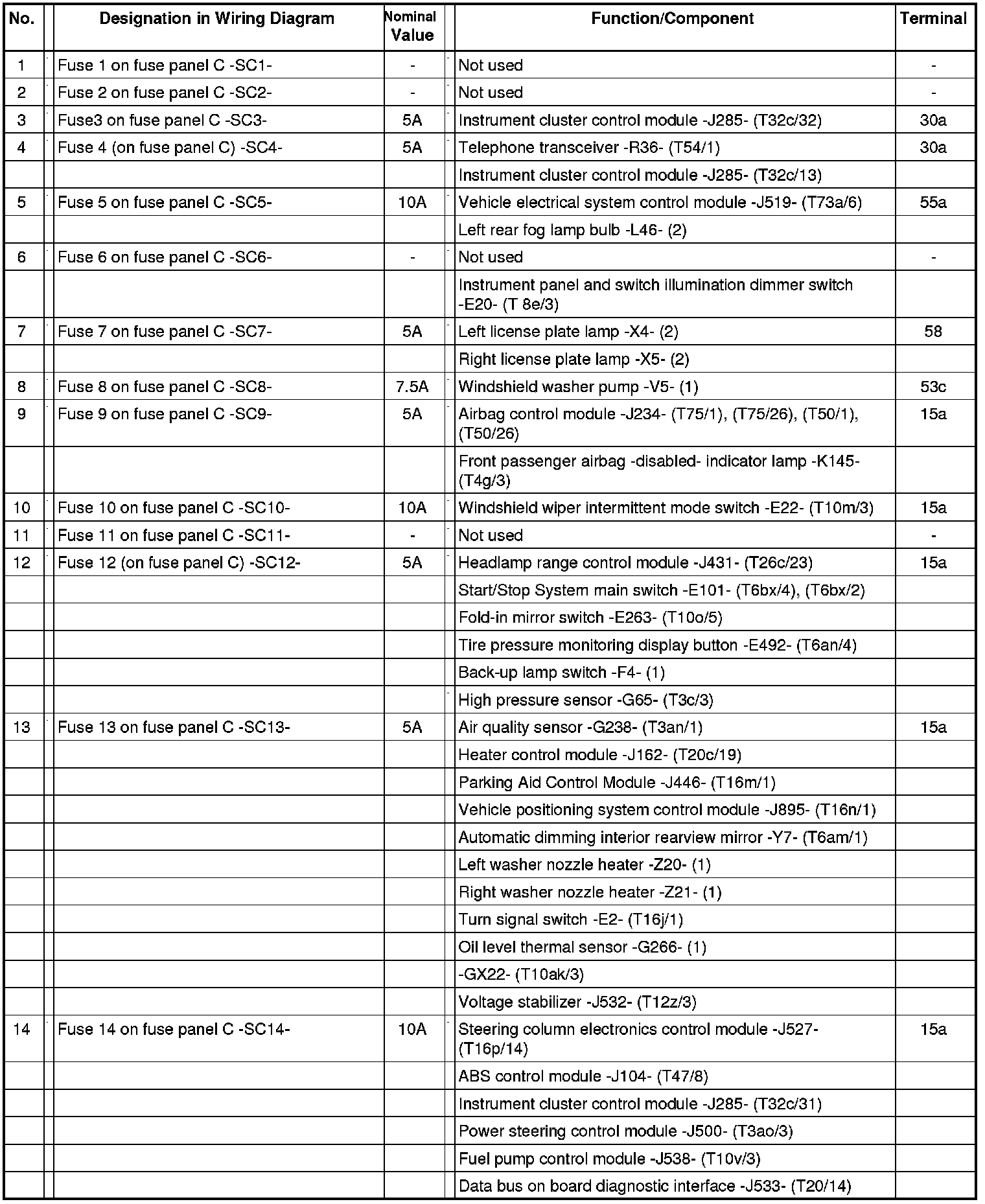

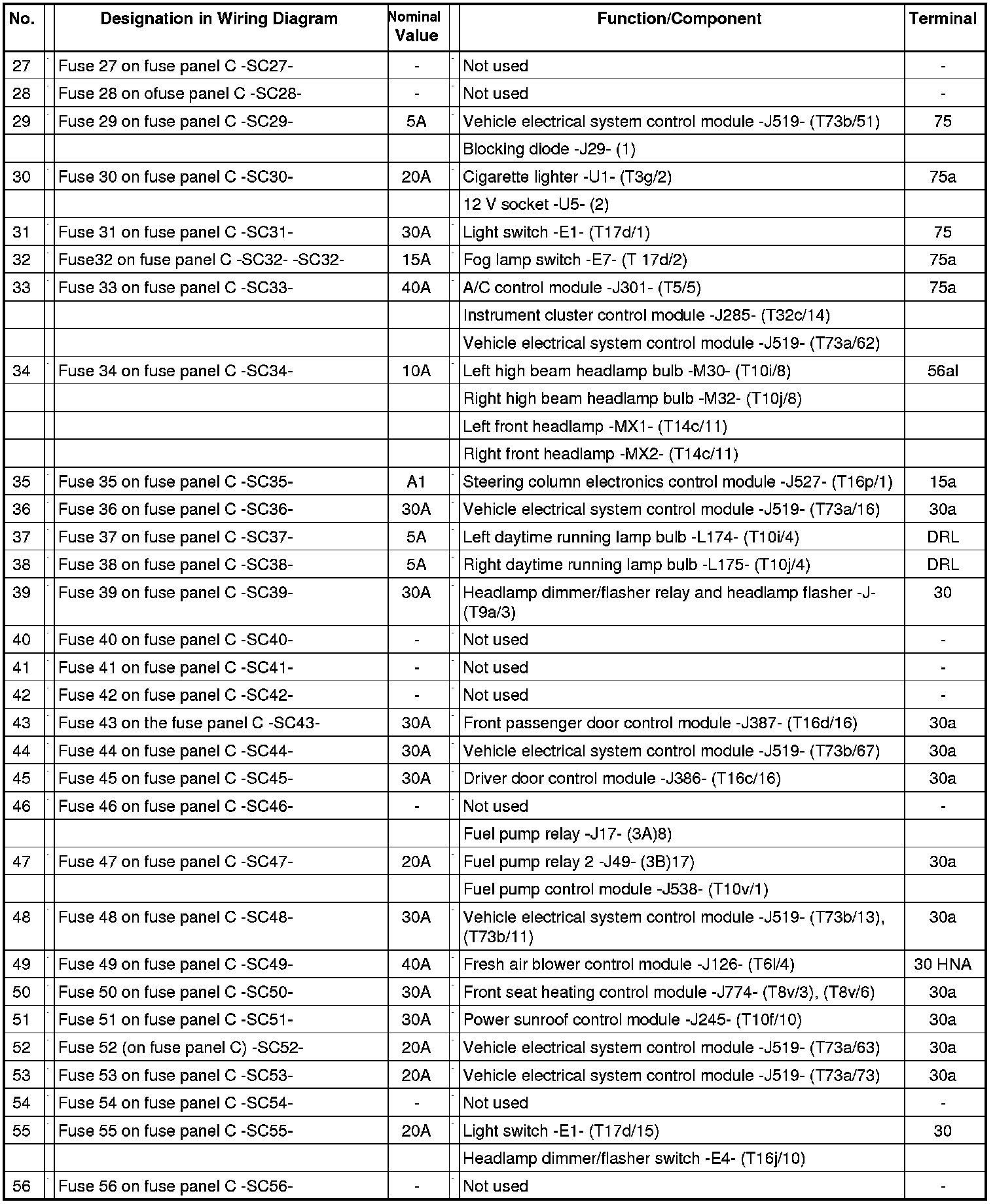

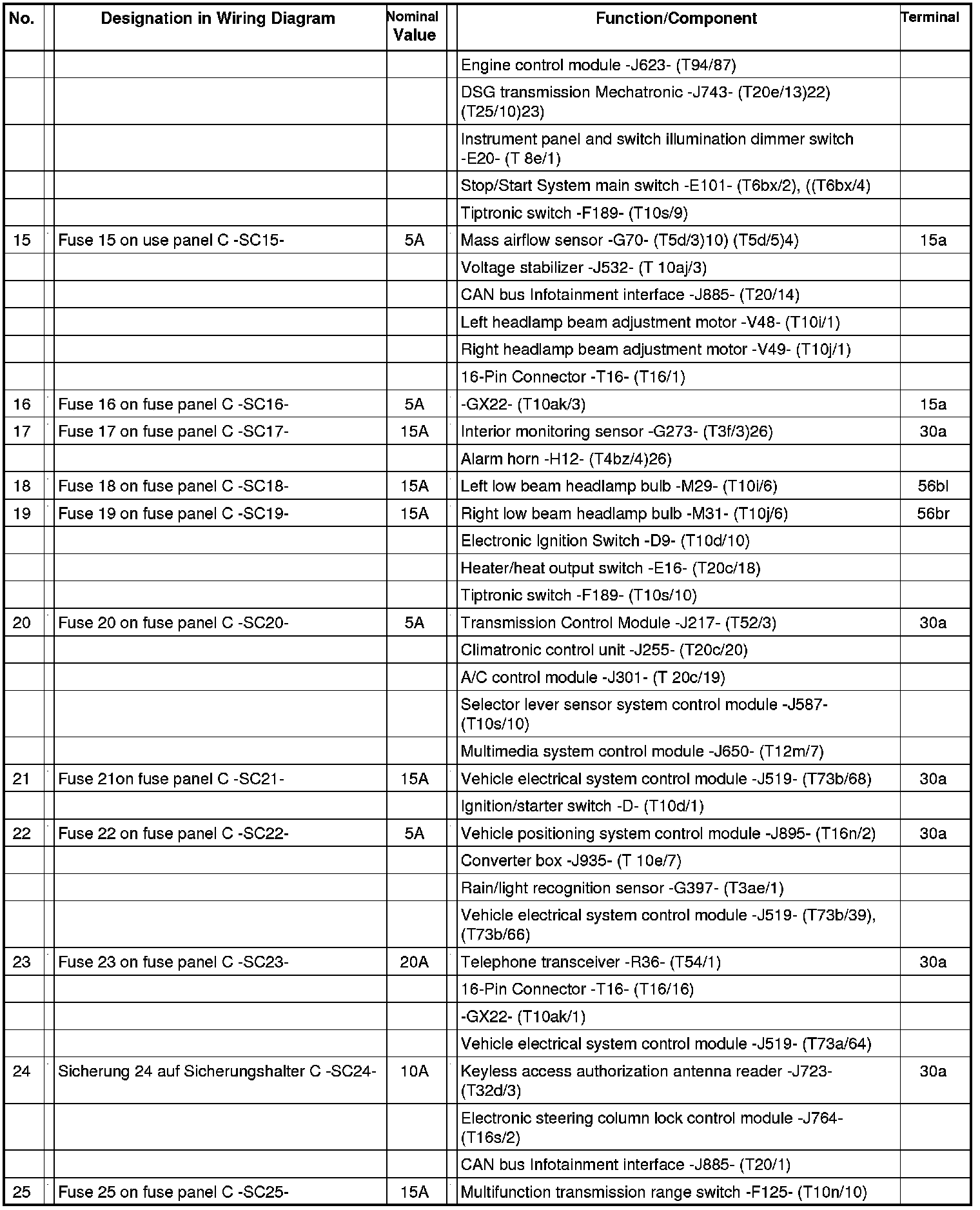

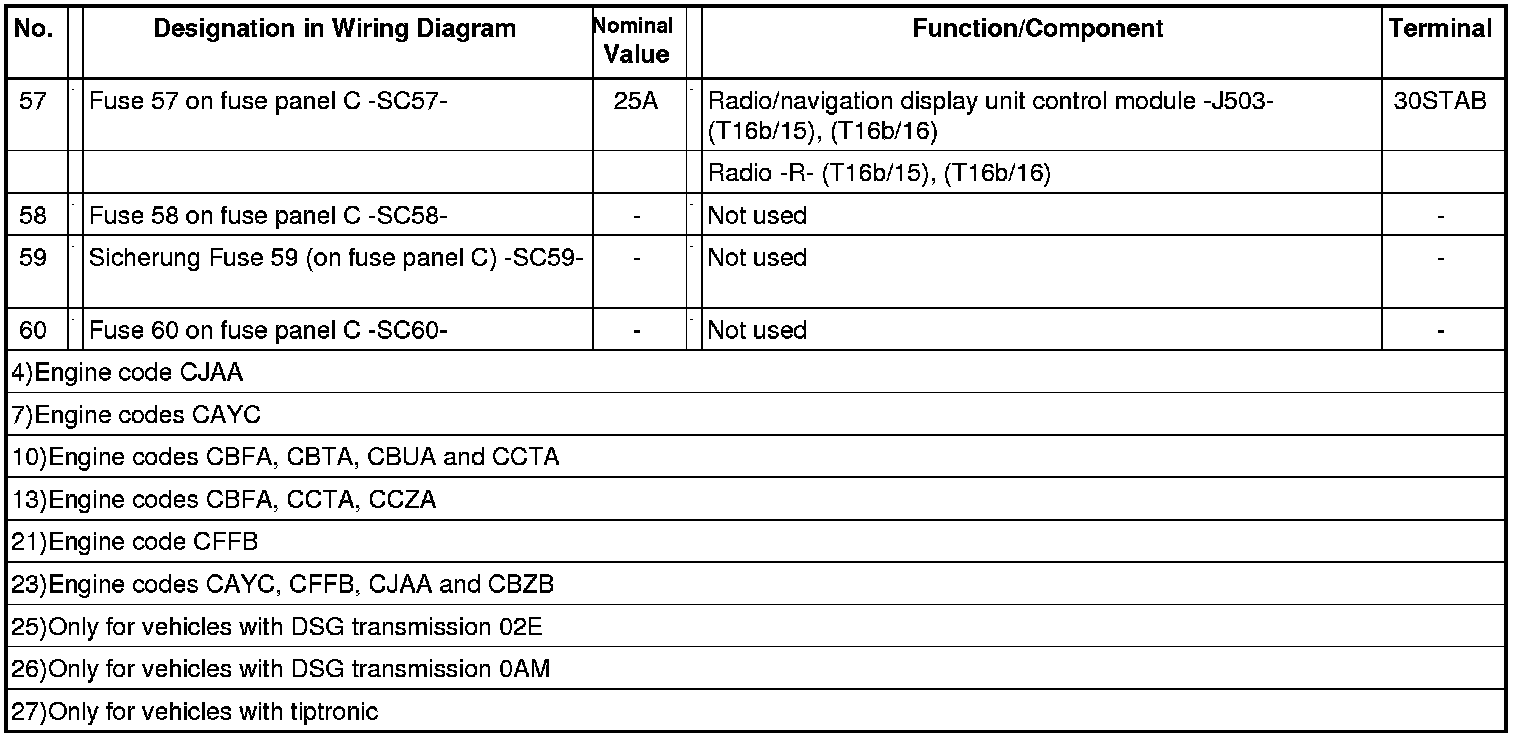

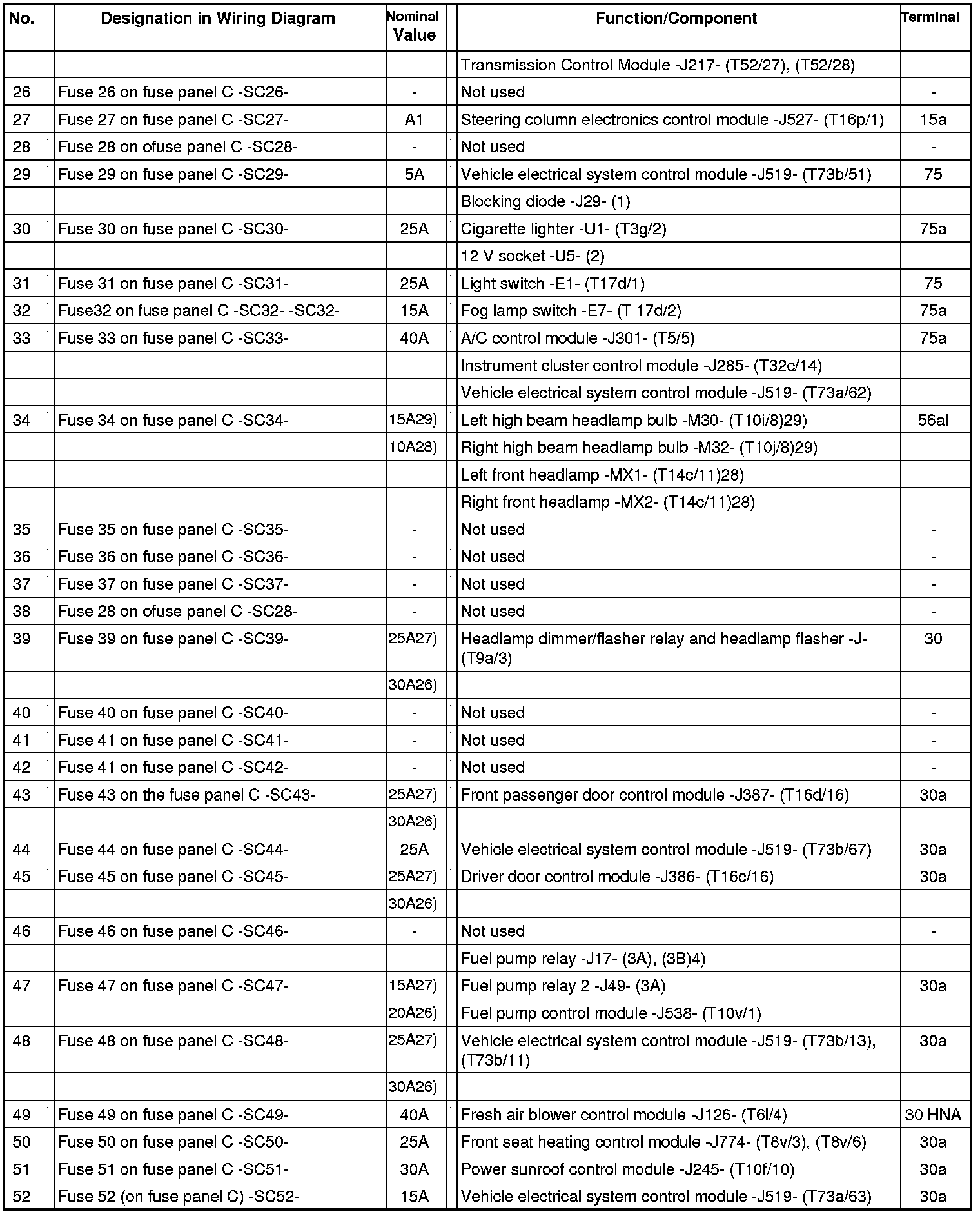

Fuses (SC) on fuse panel C, on the E-box, from July 2011

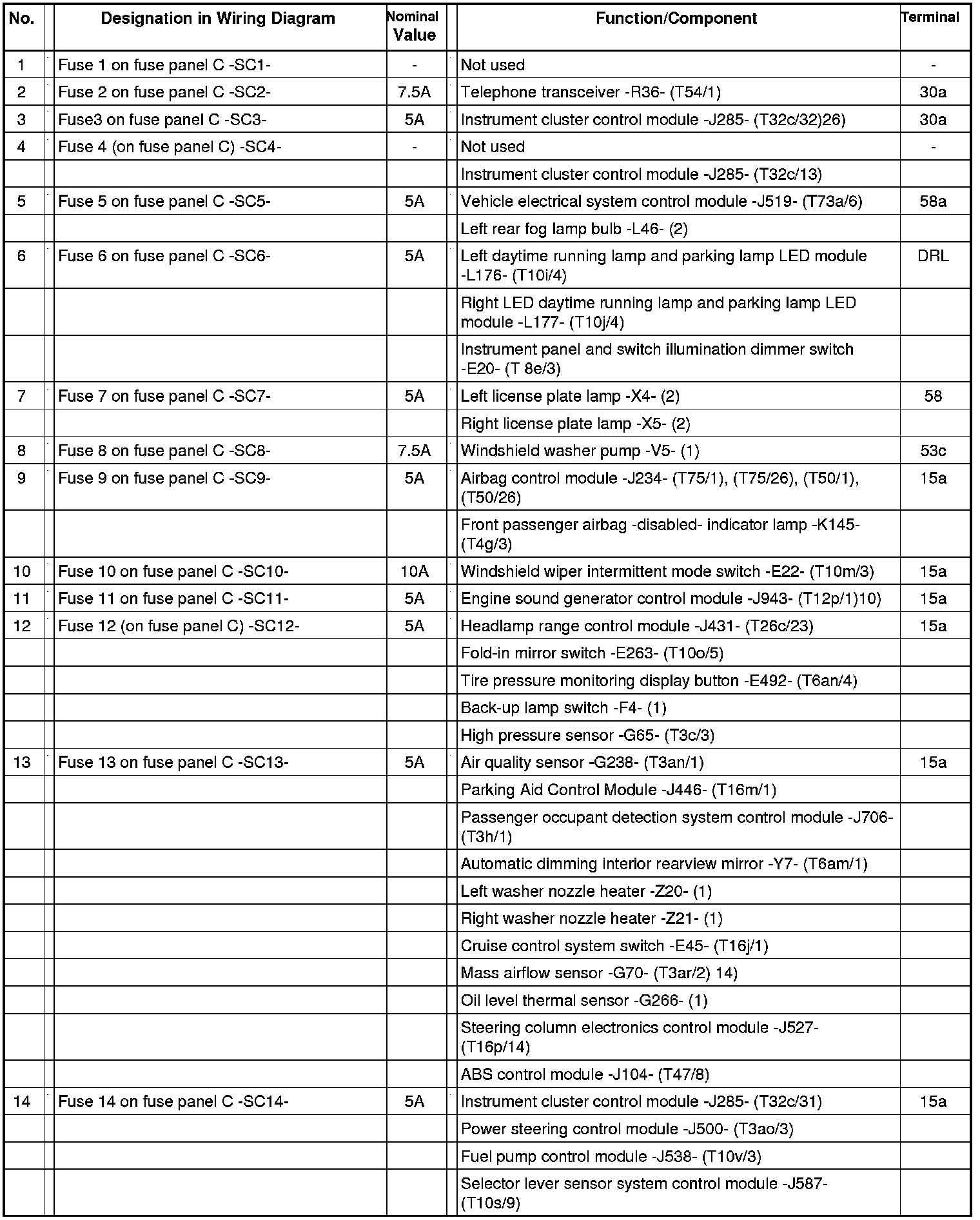

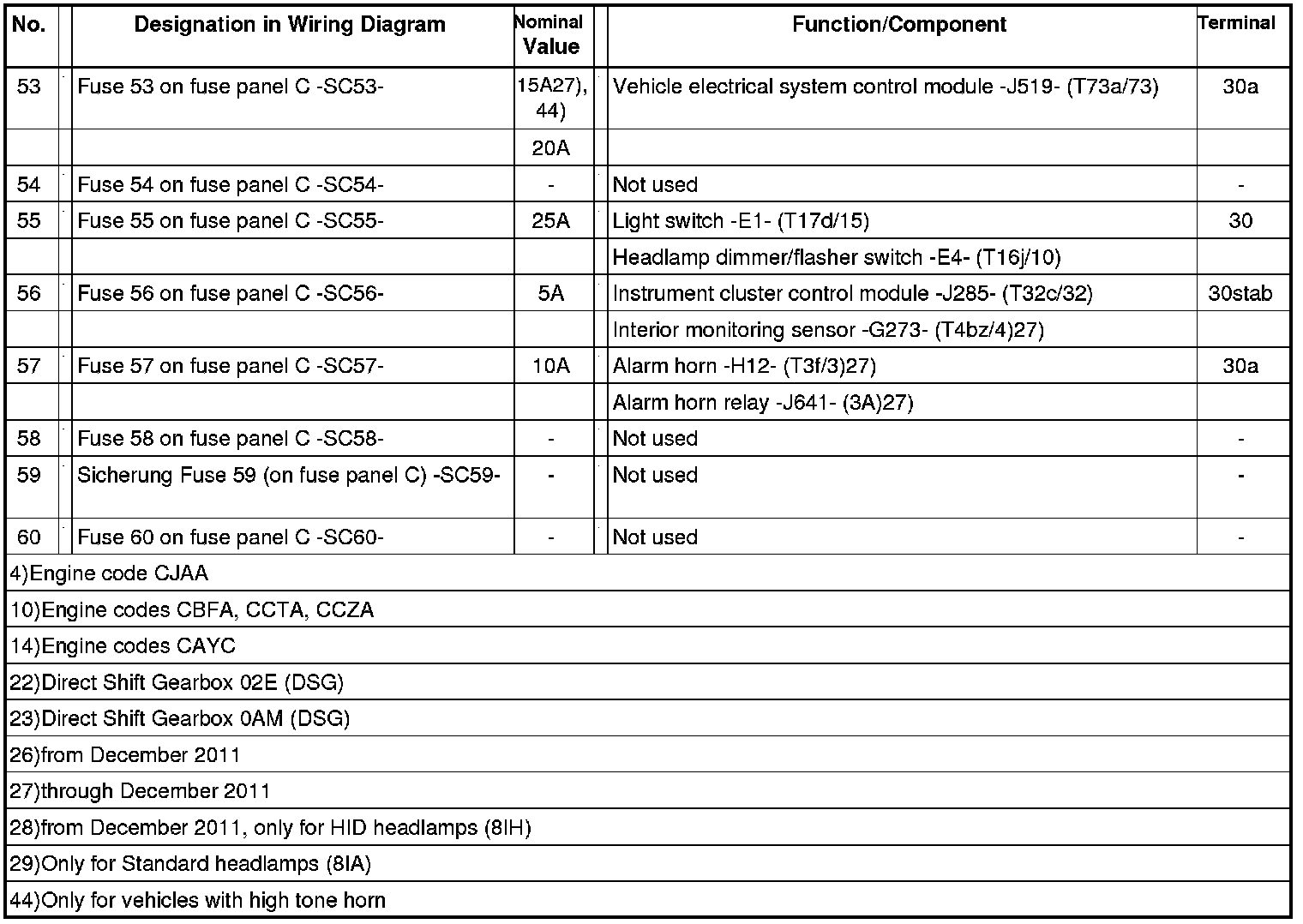

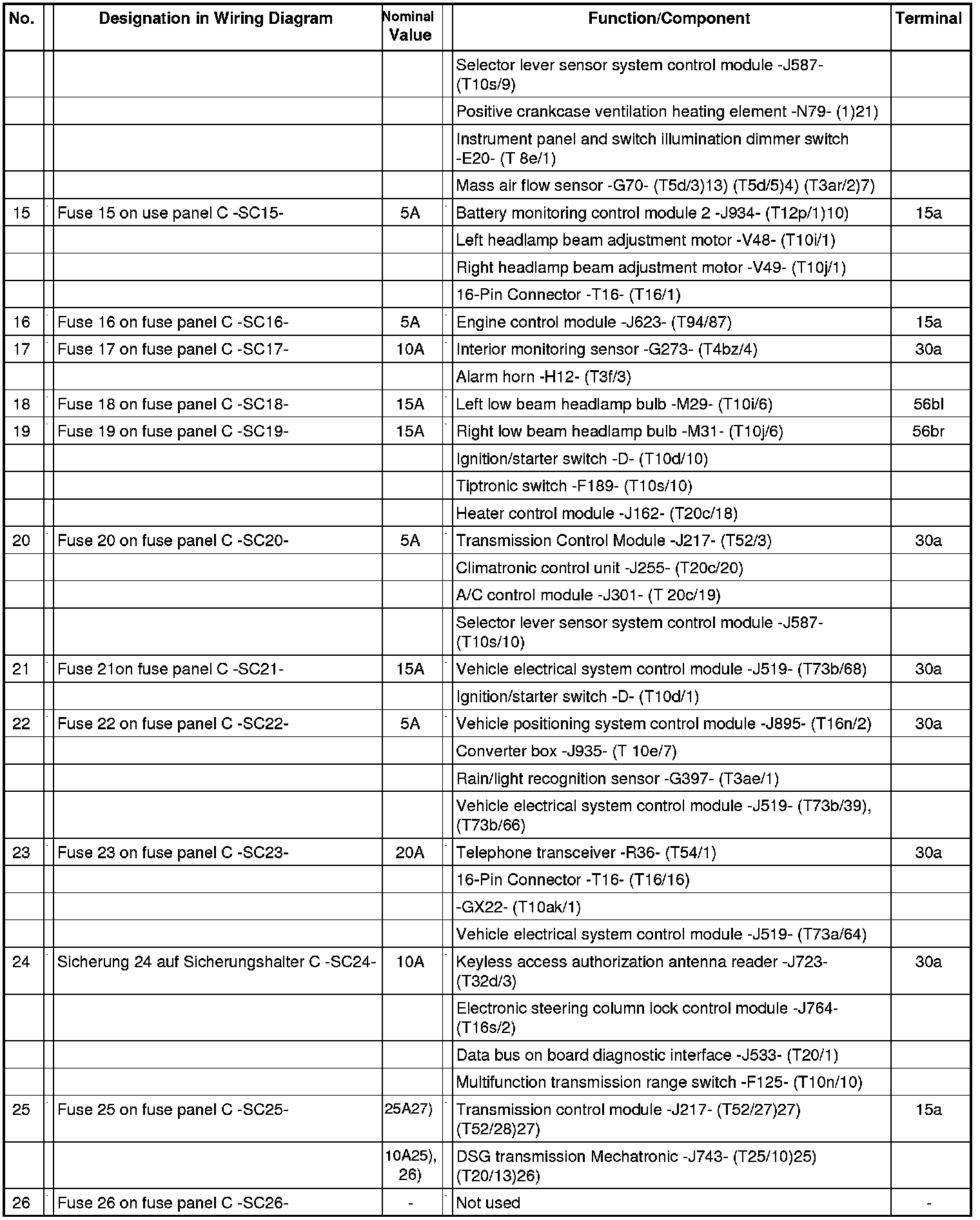

Fuses (SC) on fuse panel C, on the E-box, from July 2012
