Dimmer Switch: Service and Repair

Instrument Panel and Switch Illumination Dimmer Switch (E20)

• Turn off the ignition and all electrical consumers.

• Remove the key.

• When removing and installing components in visible area (switches, covers, trim, etc.), cover by taping the areas at which a prying tool ( trim removal wedge (VAS 3409) , screwdriver) will be positioned using commercially available adhesive tape.

Removing

- Remove the driver side instrument panel cover.

- Disconnect the connectors.

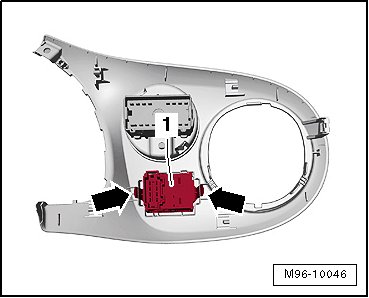

- Open the tabs - arrows - and remove the instrument panel and switch illumination dimmer switch - 1 -.






Installing

Install in reverse order of removal.
