Heating, Ventilation

Outside Air Temperature Sensor (G17)

Removing

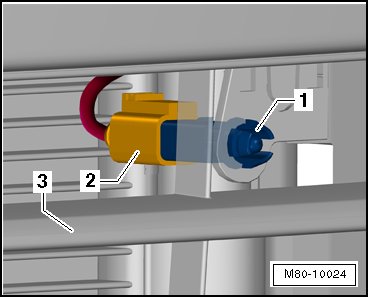

- Reach through the front bumper air grille- 3 - and unclip the outside air temperature sensor - 1 - from the retainer.

- Remove the outside air temperature sensor - 1 - from the air grille - 3 -.

- Disconnect the connector - 2 - on the outside air temperature sensor - 1 -.






Installing

Install in reverse order of removal.
