Airbag, Front Passenger Seat Occupant Sensor G128

Front Passenger Seat Occupant Sensor G128

• The front passenger seat occupant sensor (G128) does not have any influence on deploying the front passenger airbag during a crash.

• The front passenger seat occupant sensor (G128) reminds the front passenger via a symbol in the instrument cluster as well as a warning tone in the instrument cluster, to buckle up.

• On the front passenger side, a sensor is able to detect if the seat is occupied and if the seat belt has been buckled.

• On the driver side, the sensor is only able to detect if the seat belts has been buckled.

Removing

- Attach the fixture for seat repair (VAS 6136) to the engine/transmission holder (VAS 6095).

- Remove the front seat. Refer to => [ Front Seat ] Front Seat.

- Secure the seat on the fixture for seat repair (VAS 6136).

- Remove the front and tunnel side tread for the seat cover from the lower seat frame.

- Fold up the seat cover along with the seat cushion.

- Unclip and remove the wiring harness for the front passenger seat occupant sensor (G128) from the lower seat frame.

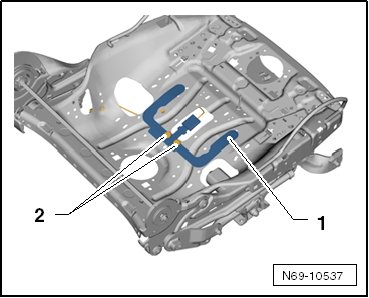

- Remove the 2 clips - 2 - with the pry lever (80 - 200) from the lower seat frame and remove the front passenger seat occupant sensor (G128) - 1 -.






• For the sake of clarity, the seat cover and seat cushion are not depicted in the figure.

Installation

• Observe installation sequence for the clips:

- Position the front passenger seat occupant sensor (G128) - 1 - and the clip and secure - 2 - them.






- Insert the clip - 3 - and guide the wiring harness - 4 - through the lower seat frame.

- Secure the wiring harness - 4 - to the lower seat frame - arrow -.

- Connect the wiring harness to the vehicle electrical system.

Installing of remaining components is reverse of removal.

- After installation, perform a function check with the ignition on.
