Air Bag Deactivation Switch: Service and Repair

Front Passenger Airbag Deactivation Key Switch (E224), Removing and Installing

Read the safety precautions when performing work on the airbag.

• Turn off the ignition and all electrical consumers.

• Remove the key.

• When removing and installing components in visible area (switches, covers, trim, etc.), cover by taping the areas at which a prying tool ( trim removal wedge (VAS 3409) , screwdriver) will be positioned using commercially available adhesive tape.

The front passenger airbag deactivation key switch (E224) is found in the right side instrument panel cover.

Removing

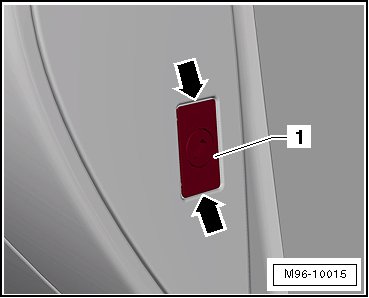

- Release the tabs - arrows - and remove the front passenger airbag deactivation key switch (E224) - 1 -.






- Disconnect the connector.

Installing

Install in reverse order of removal.
