Steering column electronics control module -J527-

-Control modules in the vehicle interior

Steering column electronics control module -J527-


Component Location:





Below steering column, near steering column switch -arrow- .


16-pin connector assignment:







A - Steering column electronics control module -J527-
Connector:

B - 16-pin connector -T16p- inside the wiring harness

1 - Fuse 27 on fuse panel C -SC27-

2 - Ground connection 2 (in main wiring harness) -367-

3 - Not used

4 - Not used

5 - Not used

6 - Not used

7 - Not used

8 - (LIN bus) connection 1 in the main wiring harness -B528-

9 - Not used

10 - Not used

11 - Not used

12 - Powertrain (CAN bus low) connection 1 in the main wiring harness -B390-

13 - Powertrain (CAN bus high) connection 1 in the main wiring harness -B383-

14 - Positive connection 4 (15a) in instrument panel wiring harness -A199-

15 - Vehicle electrical system control module -J519- (T73a/29)

16 - Not used

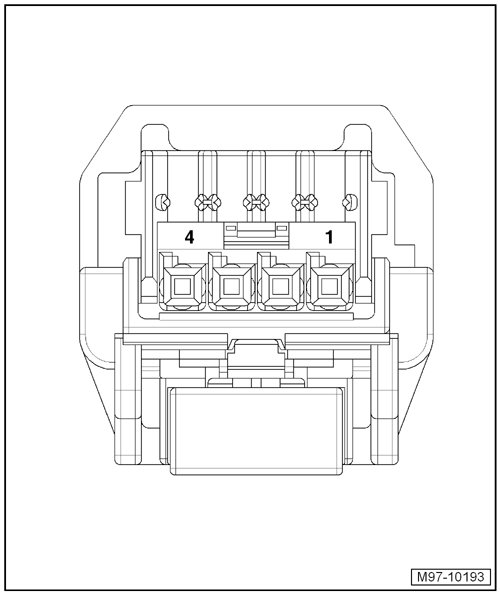

4-pin connector assignment:







A - Steering column electronics control module -J527-
Connector:

B - 4-pin connector -T4k- inside the wiring harness

1 - Airbag control module -J234- (T50/13), (T75/22)

2 - Airbag control module -J234- (T50/19), (T75/23)

3 - Not used

4 - Not used
