Global Positioning System Module: Diagrams

-Control modules in the vehicle interior

Vehicle positioning system control module -J895-

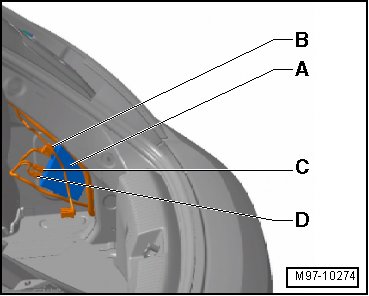

Component Location:





Under the luggage compartment trim panel on the right
side -A- .

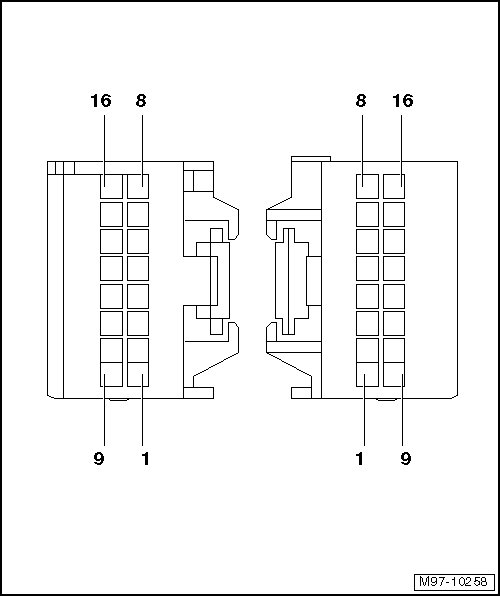

16-pin connector assignment, - T16n:







A - Vehicle positioning system control module -J895-
Pin Connectors:

B - 16-pin connector -T16n- inside the wiring harness

1 - Positive connection (15a) (in instrument panel wiring harness) -A20-

2 - Positive connection 6 (30a) inside the instrument panel wiring harness -A198-

3 - Ground connection 18 (in main wiring harness) -383-

4 - Not used

5 - Not used

6 - Instrument cluster control module -J285- (T32c/31)

7 - 16-Pin Connector -T16- (T16/7)

8 - Not used

9 - Not used

10 - Not used

11 - Not used

12 - Not used

13 - Not used

14 - Not used

15 - Not used

16 - Not used

C - 2-pin connector -T2s- inside the wiring harness

1 - GPS antenna -R50- (1)

2 - GPS antenna -R50- (2)

D - 2-pin connector -T2t- inside the wiring harness

1 - GSM antenna -R205- (1)

2 - GSM antenna -R205- (2)
